Getting Started with using Copilot within VSCode

Last updated on 2026-02-12 | Edit this page

Overview

Questions

How do I use Copilot from within Visual Studio Code?
How can I improve the relevance of responses from Copilot for my project?
What are the practical differences between the language models available within VSCode?
How much of my Copilot quota have I used?

Objectives

Install and configure Visual Studio Code extension for Copilot
Obtain answers to questions about how existing code works using Copilot’s natural language chat
Compare and contrast responses for a particular coding question from different models
Obtain suggestions on how to improve a codebase from Copilot
Personalise Copilot suggestions to match project technologies and coding standards
Determine Copilot usage within the free tier

In this episode we’ll look at installing and setting up Copilot within Visual Studio Code, so we can use it with our example project, and explore some basic features along the way.

Install VSCode Copilot Extension

Extensions are a major strength of VSCode. Whilst VSCode appears quite lightweight, and presents a simple interface (particularly compared to many other IDEs!), this is quite deceptive. You can extend its functionality in many different ways. For example, installing support for other languages, greater support for version control, there’s even support for working with databases, and so on. There are literally tens of thousands of possible extensions now.

You may remember when you opened VSCode for this project there was a “Build with Agent” panel on the right. This is the main chat interface to Copilot. But in order to use it (and other Copilot features) we need to install some extensions first. It’s possible to have VSCode manage the installation of these extensions automatically, but we’ll do this explicitly so you see the explicit changes necessary to get it working.

Firstly, select the extensions icon, then type in “Copilot” into the search box at the top, and it’ll give you a list of all Copilot-related extensions.
Select the one which says GitHub Copilot from GitHub, which is the official Copilot extension. You may also see the GitHub Copilot Chat extension, which will be automatically installed along with this one.
Select Install. It might take a minute - you can see a sliding blue line in the top left to indicate it’s working.
You’ll be presented with a “Welcome” page for the extension which covers the main features. Select Mark Done.

Now we have the extension installed, but we need to associate it with our GitHub account by signing in:

Select the Signed out button in the bottom right of the VSCode status bar, and Sign in to use AI Features.
Select Continue with GitHub.
You’ll be redirected to a GitHub login web page to authorise Visual Studio Code for GitHub. Select the GitHub account you wish to use and select Continue.
Peruse and select Authorize Visual-Studio-Code.
You may need to further authenticate with GitHub authorise this action.
If a pop-up appears in your browser to open a link within VSCode, select Open Link.

Once completed, you’ll now be able to use GitHub Copilot within VSCode.

Callout

Decide on Copilot Privacy Settings

Within GitHub itself, since Copilot’s VSCode configuration inherits from GitHub’s configuration, as a first step we can and should decide and configure a suitable level of privacy for how Copilot will operate; particularly if we are making use of sensitive or otherwise confidential data within our codebase.

We can set this within our GitHub user settings, which will apply to all we do with Copilot:

Select out GitHub profile icon at github.com, and select Settings and then Copilot

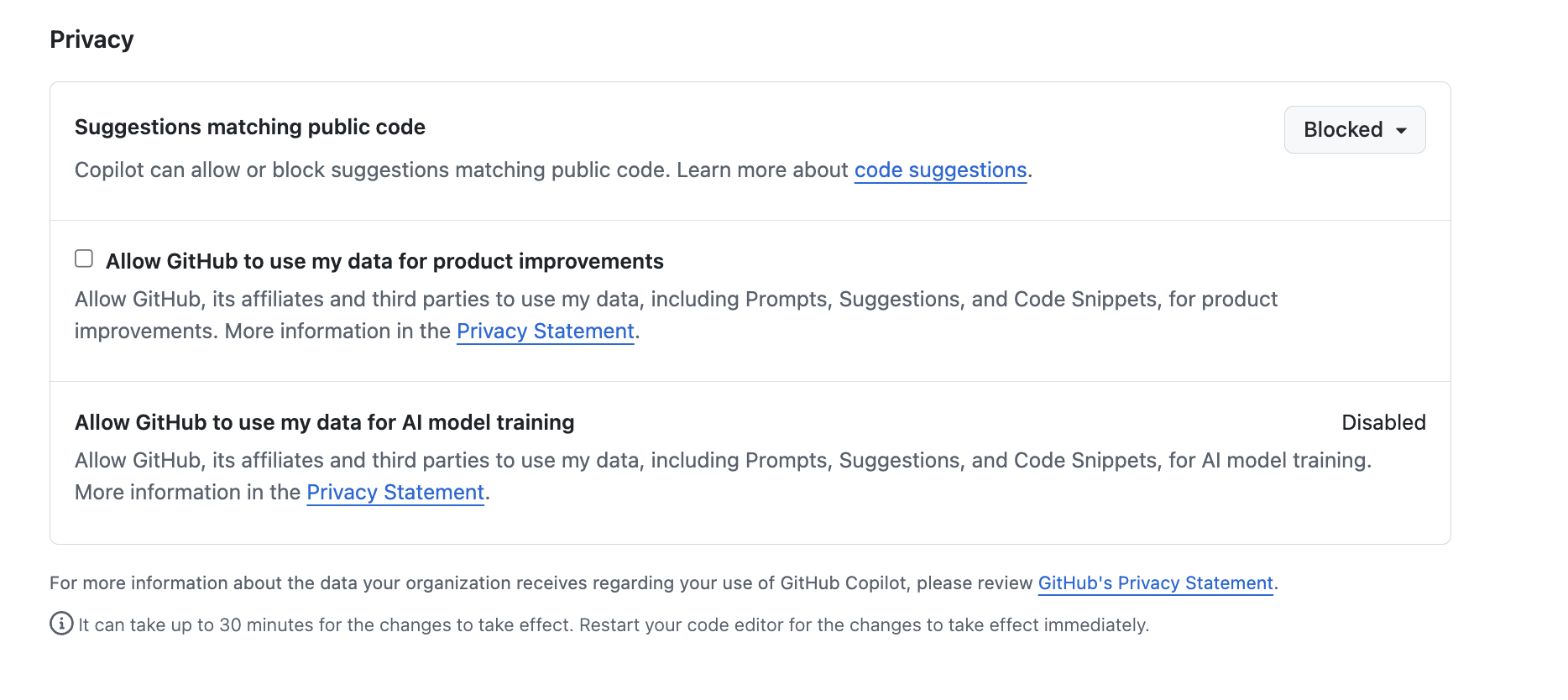

Scroll down to Privacy:

Privacy settings within GitHub Copilot

By default, in the free tier, the first two are enabled.

In general, it’s a good idea to disable Suggestions matching public code since the risk is that it may make use of public code sources in a way that isn’t properly licensed. In addition, it’s recommended to disable the other two (depending on the extent you trust GitHub and their affiliates), since - as it clearly states - they allow GitHub and others to use data and code snippets for product improvements.

Asking Questions about Your Code

Attempting to understand a new codebase, whether it’s your first week on a project or one you have inherited from another source, can be difficult. This can be due to many reasons; documentation may be incomplete, architectural decisions may be undocumented, and the people who know the system may be unavailable or have left the organisation.

We can use Copilot to build our understanding and confidence about our codebase by asking natural-language questions about the code. It helps you:

Build a high-level mental model of the system, which with complex codebases is often a huge task!
Identify where key functionality is located in the code
Understand naming conventions, patterns, and dependencies
Reduce the cognitive load of first contact with unfamiliar code

Which sounds great, but with one critical caveat: it’s important to understand that Copilot is not an absolute source of truth, but more of a guide to help build your own understanding of a codebase.

Let’s use Copilot to help us investigate how our existing codebase works.

Callout

What Does the Patient Inflammation Data Contain?

Each dataset file in data/ records inflammation measurements from a separate clinical trial of the drug, and each dataset contains information for 60 patients, who had their inflammation levels recorded (in some arbitrary units of inflammation measurement) for 40 days whilst participating in the trial.

These datasets are reused from the Software Carpentry Python novice lesson.

Each of the data files uses the popular comma-separated (CSV) format to represent the data, where:

each row holds inflammation measurements for a single patient
each column represents a successive day in the trial
each cell represents an inflammation reading on a given day for a patient

Using Copilot for the First Time

Let’s move over to using the VSCode pane on the right, labeled Build with Agent. You’ll notice at the bottom there’s a “chat” box, with a number of selectable dropdown options below it. You can hover over each one to discover what it is.

On the left, there’s Set Agent, which allows you to set the mode of operation with Copilot. Each of these modes provides an increasing degree of autonomy for Copilot to interact with your code:

Ask - designed for learning and orienting yourself with existing code without changing it.
Agent - proposes concrete code changes for your approval based on your instructions. It’s useful when you already understand a codebase that you want to change.
Plan - the most powerful mode, which lets you specify a high-level prompt to allow Copilot at a high level of autonomy to plan changes in steps, select files, and run tools or terminal commands, iterating on code edits until it is complete.

Since we want to ask questions regarding our codebase, let’s set the mode to Ask.

The next dropdown is the AI language model being used. By default, this is set to Auto so that Copilot will decide the model. However, for consistency in this training, let’s select the entry for Claude Haiki 4.5.

Select the inflammation-plot.py file in the File Explorer. You’ll notice this appears as “context” at the top of the chat box. Essentially, this is what we’re asking questions about.

Let’s now ask the very high level question: What does this code do?, and press enter. You’ll likely be asked whether you want to enable Claude Haiku 4.5 for all clients - select Enable when prompted.

You’ll find the response looks something like the following:

This code generates visualization plots for inflammation data:

1. Loads data files: Uses glob to find all CSV files matching the pattern inflammation-*.csv in the ../data/ directory, sorts them, and limits processing to the first 3 files.

2. Processes each file: For each CSV file, it:
   - Loads the data as a NumPy array using comma delimiters
   - Creates a figure with 3 subplots arranged horizontally

3. Generates three plots showing statistical summaries across patients (rows):
   - Left plot: Average inflammation values per day
   - Middle plot: Maximum inflammation values per day
   - Right plot: Minimum inflammation values per day

4. Saves output: Each figure is saved as a PNG file with the same name as the input CSV file plus .png extension.

Callout

Why Aren’t I Seeing the Same Response?

You’ll likely find it’s not exactly the same. Due to the ways in which LLMs process requests, based on an iterative probabilistic model, responses based on the same question will show differences: so essentially, AI models are probablistic, not deterministic. This effect is often visibly compounded over time, as the probabilistic outcome of a response generates an increasingly different result.

Callout

Writing Good Chat Prompts

AI tools work best with context, so it’s good to be as specific and concise as possible.

It’s also a good idea to provide simple questions, so if you end up with a large question that is decomposable into separate steps, ask each step separately and you’ll typically get a better outcome. This implies that it’s good to use a logical, iterative process of using AI to assist, using responses to simple questions to inform the next question, and so on.

There’s a very useful cheat sheet developed by Northwestern University (US) Research Computing and Data Services, which can be found in their GitHub promptEngineering repository.

Callout

Managing Context

To improve the specificity of a prompt, it’s helpful to add as much context as you can.

To add context to a chat prompt you can type # followed by the context item you want to add, such as a file, folder, tools, code elements (such as variables, functions or classes), tools, amongst others. Then press Tab to confirm. For example, we could type #inflammation-plot.py to ensure only responses relevant to that specific file will be generated. We could use #codebase if we aren’t sure which files are relevant to our question, to include all our files. Of course, our code may make use of sensitive data files that we don’t want Copilot to use, which we’ll look at shortly.

Another thing to remember is how the context of each chat informs the flow of questions. Copilot chat uses the history of a chat thread to get context about your request. To ensure you only provide the context you want, use separate threads for each new conversation area you wish to start, and delete requests that are no longer relevant or otherwise not useful.

Discussion

Improving a Chat Prompt

3 mins.

A researcher asks two questions of a particular codebase:

“What does this do?”
“What’s wrong with this code it doesn’t work”

Rewrite each of these prompts using the tips we have learned to improve the output from the model. Add your improved questions to the shared Google Doc.

Challenge

What do I Need to Know?

5 mins.

Ask the following questions about the code:

What are the main packages used?
How is Matplotlib used to generate the plots?

Show me the solution

Describe the main packages used? e.g.

1. glob: Built-in Python module for file pattern matching
   - glob.glob() finds all files matching a wildcard pattern (inflammation-*.csv)
   - Useful for batch processing multiple files with consistent naming

2. numpy: Numerical computing library
   - np.loadtxt() loads CSV data into a NumPy array
   - data.mean(axis=0), data.max(axis=0), data.min(axis=0) compute statistics across patients (rows) for each day (columns)

3. matplotlib.pyplot: Plotting library for creating visualizations
   - plt.figure() creates a new figure window
   - fig.add_subplot() adds subplots to the figure
   - axes.set_ylabel() and axes.plot() configure and draw the plots
   - fig.tight_layout() optimizes spacing
   - fig.savefig() exports the figure as an image file

These three packages work together: glob finds the files, numpy processes the data, and matplotlib visualizes the results.

How is Matplotlib used to generate the plots? e.g.

This script uses Matplotlib to create and save visualization plots:

1. Create a figure: plt.figure(figsize=(10.0, 3.0)) creates a new figure with dimensions 10 inches wide by 3 inches tall.

2. Add subplots: fig.add_subplot(1, 3, n) creates a grid of 1 row and 3 columns, with n specifying which subplot (1, 2, or 3):
   - axes1, axes2, axes3 are the three subplot axes objects

3. Label and plot data:
   - axes.set_ylabel() adds a label to the y-axis
   - axes.plot() draws a line plot of the data on that subplot
   - Each subplot shows a different calculation: mean(), max(), and min()

4. Layout adjustment: fig.tight_layout() automatically adjusts spacing between subplots to prevent overlap.

5. Save output: fig.savefig() saves the entire figure as a PNG image file.

Due to the ambiguous nature of language and how we specify prompts, and the nature of how LLMs operate and generate responses, as we have seen, we’ll fairly typically have overlaps in responses to multiple questions. Again, therefore, the key is to isolate what’s useful, and drill down and be increasingly specific on questioning until we have what we need (as we would in an a typical conversation).

Callout

Why Aren’t I Seeing the Same Results for the Same Question on the Same Machine?

Sometimes, you may ask the same question and get a different response, even on the same machine in the same editor.

As we’ve mentioned, LLMs are non-deterministic, in that the same question can produce different answers. In addition to it’s probablistic nature, there are other reasons for these differences:

Context-dependent: small changes in files, cursor position, or prompt matter
Approximate understanding: infers intent, doesn’t fully “understand” the codebase
Model changes over time: behaviour can shift as Copilot and it’s underlying models are updated

Personalising Copilot to Match our Project

What is an Instructions File?

GitHub Copilot can be personalised by adding a instructions file to a repository that tells Copilot how you want it to behave in that project.

The file acts as persistent, project-level guidance for Copilot, covering things like:

Preferred architecture and design patterns
Coding style and naming conventions
Approved or banned libraries
Testing expectations and quality standards
Security or safety rules
How detailed Copilot’s answers should be

By giving Copilot this shared context we can specify the developer’s (or developer team’s) coding conventions, reuse existing patterns, and avoid unwanted approaches, with the aim to make its suggestions more relevant for a particular project.

It serves a similar purposes to a CONTRIBUTING.md file in a code repository; it provides guidance for how suggestions, code changes and contributions should be made, but aimed at Copilot’s day-to-day decisions instead. It does this by adding context to queries from the .github/.copilot-instructions.md file.

For example, if we were to ask Copilot “How should I make this code more readable?”, without instructions Copilot may suggest to:

Rename or format variable or function names inconsistently
Change behaviour subtly in an undesired way
Use an indentation style that isn’t typically used by team members
Without instructions, Copilot may introduce a new design pattern the repository doesn’t use

Create an Instructions File

Let’s create an instructions file now, by selecting the gear icon at the top right of the CHAT panel, and selecting Generate Chat Instructions. At this point, VSCode will do a number of things in order to create this file:

Analyse the structure and files in the workspace
Analyse the data directory data/ which contains our inflammation data files
Create the .github/.copilot-instructions.md file itself
Summarise the contents of the new instructions file
Provide some questions for feedback to add more specific guidance in the instructions file

Note that it may request access to run a Bash command in the data directory, from which it can then ascertain the structure of the data, which you’ll have to approve.

We’ll look at the contents of the file in a moment.

You may also see some feedback questions, such as:

1. Should I add more detail about the other datasets (climate data, coordinates), or keep focus only on the inflammation data workflow?
2. Are there specific Python version requirements or package versions that should be documented?
3. Would you like guidance on handling edge cases (e.g., what happens with empty CSV files, missing columns)?

Working with our Instructions File

You should now see a .github/copilot-instructions.md file appear in VSCode’s file browser. If you open this file now, you’ll see some things to note:

Content is highlighted with a Keep / Undo option. This is VSCode’s way of highlighting the changes Copilot has made as suggestions, so that you explicitly review and approve them.
A summary of the main code entry point, the data source directory, and the overall workflow of the application
A section on the code patterns and conventions, essentially generalising how the code works and providing assumptions on how it operates, e.g. axis=0 consistently means aggregate across rows (patients), preserving measurement dimensions
Some suggestions on how to refactor (tidy) the codebase and otherwise enhancement it

Approve this file addition by selecting Keep.

From this starting point we are free to update this file manually as we continue to develop the code, and this context will be used whenever we interact with Copilot.

Specifying Privacy per File Type

In VS Code, GitHub Copilot gives developers some mechanisms to control the level of privacy. This should be considered important where our code uses sensitive or otherwise confidential data, or potentially valuable IP-related code, such as algorithms.

At a high level, Copilot works by sending small, relevant snippets of your open code (plus surrounding context) to the Copilot service to generate suggestions. You don’t explicitly “upload a project”, but you do control which files Copilot is allowed to see and draw context from.

The most practical control is scoping Copilot by file, folder, or workspace. In VS Code you can disable Copilot entirely, or selectively turn it off for particular file types (for example, configuration files, data files, or notebooks).

For example, we edit our VSCode settings to ignore csv files by:

Using Ctrl + Shift + P or Cmd/Windows Key + Shift + P to open the Command Palette
Entering and selecting Preferences: Open User Settings (JSON)

In the settings.json file that appears, add the following and save the file:

YAML

   "github.copilot.enable": {
      "*": true,
      "csv": false
   }

This will have the effect of potentially including all file types in context by default, but not CSV files.

If you wanted a stricter “default deny” approach instead, you could specify false for * and enable each filetype explicitly.

There are stricter controls, including some that allow exclusion by directory specifications, but these are currently limited to Copilot Business users for their repositories and organisations.

Obtaining Guidance on how to Improve our Code

Now have an instructions file to guide Copilot, let’s take its guidance one step further. So far we’ve been asking quite specific questions about this codebase in order to learn more about it. But let’s now consider we might want to do to improve it.

Looking at the code, you may already have your own ideas for how it could be improved, but let’s ask Copilot instead. Another aspect we haven’t looked into yet is the other available AI models we can use. So far we’ve only used the Claude Haiku 4.5 model, but there are others at time of writing selectable from the models dropdown: essentially some variants of GPT, and a Raptor model preview.

Callout

What’s the ‘x’ Figure Displayed Next to Each Model?

Next to each model you’ll see an x figure, e.g. 1x. This is a multiplier related to the “cost” of using this model within our quota of premium requests. So models with a 2x beside them will cost twice as much as one with 1x.

It’s important to be clear on the relative cost, since our quotas will be consumed more quickly with higher cost multipliers!

Challenge

Asking Copilot to Suggest Improvements

10 mins.

Select + to create a new chat conversation
Ensure you have the Ask mode selected in the chat box, and the inflammation-plot.py file open and selected in the code editor
Select one of the Claude Haiku 4.5 or GPT-5 mini models in the model dropdown.
Choose a prompt to ask Copilot how to improve this code, e.g.:
- How can I make this code more readable?
- How should I refactor this code to be more modular?
- What can I do to improve this code?

Repeat this for the other model, asking the same exact question each time:

What answer does each model give you?
How are these responses similar?
How are these responses different?

Don’t update your code with any of the suggestions just yet, we’ll come to this in the next episode.

Use any remaining time to explore asking other questions!

Show me the solution

For the question How can I make this code more readable? (your responses may differ!)

Note that, for each model, at the top of the response, it mentions three references are used:

copilot-instructions.md - as we would expect
inflammation-01.csv - since it’s pattern is referenced in the source code
inflammation-plot.py - since this is the file it’s taken as context

Claude Haiku 4.5:

Your code can be made more readable by extracting the repetitive subplot pattern into a helper function and using a tuple/list to store the axes. Here's a refactored version:

PYTHON

import glob

import numpy as np
from matplotlib import pyplot as plt

def plot_statistics(axes, data, stat_func, label):
    """Plot a single statistic on the given axes.

    Args:
        axes: Matplotlib axes object
        data: NumPy array of inflammation measurements
        stat_func: Function to compute statistic (e.g., data.mean)
        label: Y-axis label string
    """
    axes.set_ylabel(label)
    axes.plot(stat_func(axis=0))

filenames = glob.glob('../data/inflammation-*.csv')
filenames.sort()
filenames = filenames[0:3]

for filename in filenames:
    print(filename)

    data = np.loadtxt(fname=filename, delimiter=',')

    fig = plt.figure(figsize=(10.0, 3.0))
    axes = [fig.add_subplot(1, 3, i) for i in range(1, 4)]

    plot_statistics(axes[0], data, data.mean, 'average')
    plot_statistics(axes[1], data, data.max, 'max')
    plot_statistics(axes[2], data, data.min, 'min')

    fig.tight_layout()
    fig.savefig(filename + '.png')

Key improvements:

- Helper function eliminates the three identical ylabel/plot blocks
- List comprehension replaces axes1, axes2, axes3 variables
- Docstring documents the function's purpose and parameters
- Maintains all existing functionality and conventions from your codebase

GPT-5 mini:

Refactored file to improve readability (extracted helper, constants, main, axes list):

PYTHON

# ...existing code...
import glob
import numpy as np
from matplotlib import pyplot as plt

FIGSIZE = (10.0, 3.0)
DATA_PATTERN = '../data/inflammation-*.csv'
FILE_LIMIT = 3

def plot_stat(ax, data, stat_func, ylabel):
    """Plot a statistic computed from data on ax."""
    ax.set_ylabel(ylabel)
    ax.plot(stat_func(data))

def main():
    filenames = glob.glob(DATA_PATTERN)
    filenames.sort()
    filenames = filenames[:FILE_LIMIT]

    for filename in filenames:
        print(filename)
        data = np.loadtxt(fname=filename, delimiter=',')

        fig = plt.figure(figsize=FIGSIZE)
        axes = [fig.add_subplot(1, 3, i + 1) for i in range(3)]

        plot_stat(axes[0], data, lambda d: d.mean(axis=0), 'average')
        plot_stat(axes[1], data, lambda d: d.max(axis=0), 'max')
        plot_stat(axes[2], data, lambda d: d.min(axis=0), 'min')

        fig.tight_layout()
        fig.savefig(filename + '.png')

if __name__ == '__main__':
    main()
# ...existing code...

Key similarities - both models:

Refactored the duplicated fig.add_subplot generation into a Python list comprehension
Refactored the duplicated axes set up into a separate function
Added a docstring to the new function, albeit only a brief one with GPT-5 mini

Key differences:

Claude Haiku 4.5:
- Defines constants for some of the hardcoded values
- The high-level code is refactored into a main() function
- Adds a __name__ == '__main__' condition guarding a call to the refactored main() function
GPT-5 mini: the call to the refactored plotting function uses a lambda definition as an argument
- Does not provide a textual summary of what it has done at the end

Challenge

Class Discussion: What are the Benefits and Risks?

5 mins.

Having used some of the features of Copilot, what do you think are:

The benefits are of using it?
The risks of using it? What could go wrong?

Show me the solution

Possible benefits:

Accelerates coding by generating boilerplate, scaffolding, and repetitive patterns
Helps explore implementation options and alternative approaches quickly
Assists with learning unfamiliar APIs, frameworks, and languages
Improves consistency by mirroring local code style and conventions
Speeds up refactoring, renaming, and small transformations
Frees developer time to focus on higher level concerns

Possible risks:

Discourages critical thinking
Produce plausible but incorrect or incomplete code
Subtly adapt code behaviour that is undesired and difficult to detect
Suggest outdated or deprecated patterns
Ignore project-specific requirements or architectural decisions
Obscures rationale and decision-making responsibility
Risks licensing or provenance uncertainty if not reviewed
Reinforce poor existing patterns in the codebase
Can deskill developers if used uncritically
Risks generating incorrect output data which ends up in a research publication

Callout

Do Not Assign Rational where it Doesn’t Exist

It’s tempting to assign a reason why AI models are making certain suggestions. However, it’s importnat to note that there is no high-level rationale at all, despite appearances.

Copilot and similar tools are suggesting patterns, not reasoning about intent — and that distinction really matters when you’re building software you’ll have to maintain into the future. Remember that such tools can be confidently incorrect.

If you assume “Copilot must have chosen this for a good reason”, you miss the critical step: your own review and justification.

One way to consider Copilot is as a fast junior developer with infinite autocomplete and zero accountability! Such tools are optimised for help, not correctness: suggestions still need human review.

What’s my Copilot Usage?

It’s important to keep track of just how much of our Copilot “plan” we’re using, particularly since we’re (by default) on the free tier of Copilot. We can see an overview of what we’ve consumed and how much is remaining by selecting the Copilot icon (on the left of the bell-shaped icon on the far bottom right of the status bar), e.g.

So in this case, we can see that this user has consumed 0.3% of its quota for inline suggestions (which we’ll look at later), and 36% of the chat messages quota. This allowance resets on a monthly basis, in this case February 23 2026.

Key Points

Copilot’s capabilities are added to VSCode by installing two plugins, GitHub Copilot and GitHub Copilot chat.
Consider and configure the level of privacy for Copilot by configuring it within your account at GitHub’s website.
Generally, it’s recommended to disable Suggestions matching public code at a minimum to avoid it making use of public code sources in a way that isn’t properly licensed.
Copilot has three modes of operation: Ask, Edit and Agent, each delegating a higher degree of autonomy to Copilot.
Due to the way LLMs process requests, responses based on the same question will likely show differences.
To write a good chat response, be specific and add as much context as possible.
Add context to a prompt by including # followed by the context, e.g. #inflammation-plot.py or #codebase'.
Personalise Copilot’s context by creating an .github/.copilot-instructions.md file.
Explicitly deny (or allow) Copilot to use specific file types by editing or adding github.copilot.enable in settings.json.
Due to the way LLMs work, there is no “rationale” behind Copilot’s responses.
Check Copilot’s usage for inline suggestions and chat messages within your current tier by selecting it’s icon in the status bar.
