Overview
Questions
- Where does generative AI fit within the broader historical and technical landscape of AI systems?
- How do large language models generate text, code, or explanations without understanding meaning in a human sense?
- How can an AI coding assistant help development within an IDE?
- What are the mechanisms by which IDE AI assistants provide help?
- How should I sensibly and responsibly include AI coding assistants in my development workflow?
- What are the limitations of a free Copilot account?
- What is GitHub Copilot?
- Which AI models are available within Copilot?
Objectives
- Describe where ChatGPT and similar large language models fit within the broader AI landscape.
- List the three main categories of AI systems.
- Explain, at a conceptual level, what generative AI and ChatGPT are.
- Summarize the primary functions and intended use cases of common AI coding assistants.
- Describe some common tasks undertaken by an IDE coding assistant.
- Describe a responsible approach to using IDE coding assistants in development.
- Describe how GitHub Copilot integrates with Visual Studio Code.
- Describe the lifecycle of a Copilot request and how it uses data.
- Describe the different built-in models and their specialisms and tradeoffs.
- List the limitations of the free pricing tier of GitHub Copilot.
Introduction

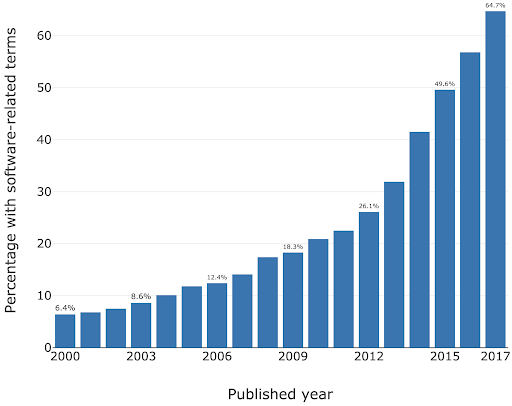

Software is critical to research - the Software Sustainability Institute’s UK Research Software Survey found that more than 92% of academics use research software, and 56% write their own code. A study also conducted by the Institute also found an exponential increase in the prevalence of software-related terms in publications between 2000-2017.
As a specific institutional example, when researchers were asked “how important is research software to your work?” in a software study conducted at the University of Southampton, 73% of respondents indicated that it was “Vital”.
For many researchers, writing code for data analysis or software development can be boring, frustrating, or intimidating. Most researchers would rather be thinking about and researching their subject matter rather than spending lots of time learning a programming language and writing code. Therefore, with easy access to AI tools, it can be very tempting to ask AI to write your research code for you.
This course aims to:

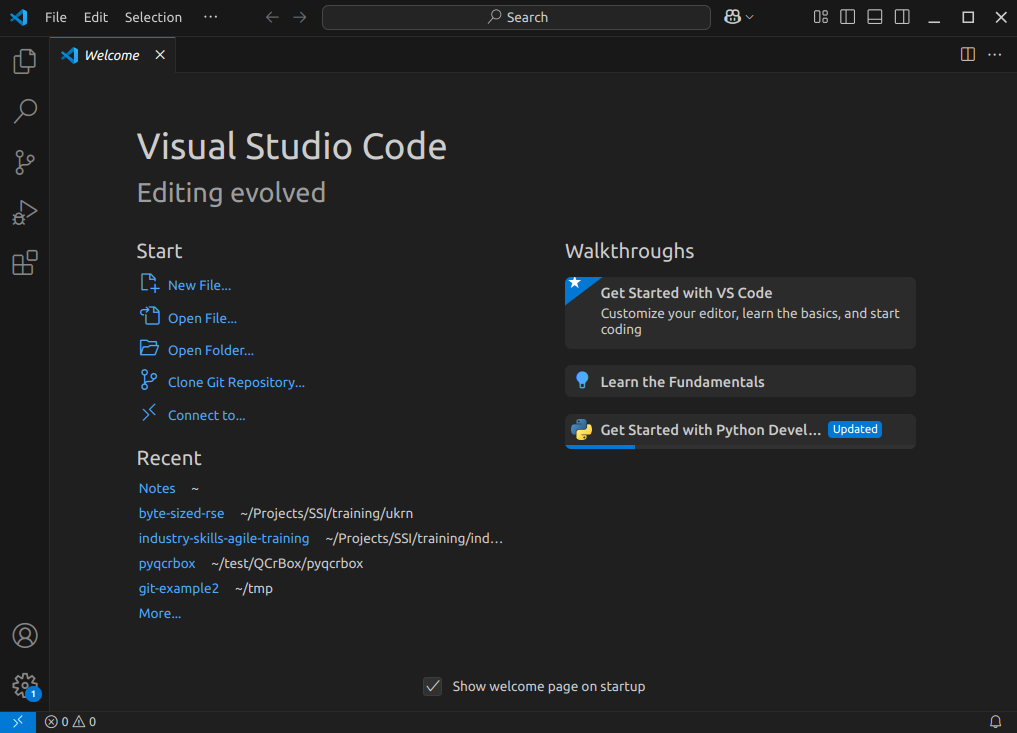

- Recap/provide a light introduction for how to use Microsoft Visual Studio Code
- Provide a working AI-supported environment within the Visual Studio Code Integrated Development Environment
- Demonstrate the fundamentals of how to use Copilot within Visual Studio Code to expedite research software development
- Introduce practical ways to mitigate the risks of using AI coding assistants within day-to-day software development
Current Landscape of AI
In recent years, one particular type of AI system, generative AI, has dominated public and professional interaction with artificial intelligence. While highly visible, generative AI represents only one approach within a much broader AI landscape.
At a high level, today’s AI systems can be grouped into three broad categories:
1. Rule-Based and Decision Systems
These systems operate using explicitly defined rules, logic, or constraints. Their behaviour is deterministic and transparent, which makes them reliable in stable, well-defined environments. Rule-based systems are still widely used in areas such as compliance, governance, and safety-critical decision-making. However, they are limited in their ability to handle ambiguity, novelty, or rapidly changing conditions.
A laboratory safety interlock is an example of a rule-based system. It monitors the state of critical variables, such as door positions, pressure levels, temperature, radiation shielding, or airflow, and allows an action only if all safety conditions are met. For example, a high-power laser system may be physically prevented from firing unless the enclosure door is closed, warning lights are active, and emergency stops are disengaged. If any condition is violated, the system immediately shuts down or blocks operation.
These systems are deterministic and transparent, in other words the same inputs always lead to the same outcome and the rules governing behaviour are explicitly defined. Unlike learning-based AI systems, laboratory safety interlocks do not adapt or infer, they exist to enforce safety rules reliably, even in the presence of human error.
2. Predictive and Analytical Systems
These systems learn patterns from data to make predictions, classifications, or risk estimates. Rather than following fixed rules, they use statistical models to answer questions such as ‘What category does this belong to?’ or ‘How likely is this outcome?’ Predictive AI systems are common in research and operational settings, including data analysis, diagnostics, and forecasting. Their outputs support decisions but do not create new content.
One example of a predictive AI system is a machine-learning model trained to automatically label features in microscope images, such as identifying specific cell types or structures.
The model learns from large sets of images that have been annotated by experts, using statistical patterns like shape, texture, and intensity to distinguish between categories. Once trained, it can rapidly classify new images, allowing researchers to analyse large datasets more efficiently and consistently than manual methods.
The system provides probabilities, rather than definitive answers, as outputs and does not generate new content or biological insight. The results must be validated and interpreted by researchers, as the model’s performance depends heavily on the quality of the training data and imaging conditions.
3. Generative Systems
Generative AI systems are designed to produce new outputs that resemble the data on which they were trained. This includes generating text, code, images, or other media. The current AI systems that we are familiar with, such as ChatGPT, fall into this category. These systems are optimised for producing fluent and contextually appropriate responses, not for verifying truth or making authoritative decisions.
Some examples of generative AI uses:
- The language learning app Duolingo uses generative AI to explain mistakes and practice conversations. The features are part of a new subscription tier called “Duolingo Max”.
- The education website Khan Academy is using generative AI for their tutoring chatbot called “Khanmigo”
- An app called Be My Eyes helps people with visual impairments to identify objects and navigate their surroundings, by using the image recognition capabilities of GPT-4.
Most AI systems in use today are narrow, task-specific tools. Some are designed to enforce rules, others to analyse data and make predictions, and an increasingly visible group, generative systems, are designed to produce new content. Generative AI systems are powerful and influential, but they are not representative of AI as a whole. Hopefully, understanding these broad categories helps us to set appropriate expectations for AI and prepares us to examine generative AI in more detail.
| AI System Type | What the system does | Strengths | Limitations |
|---|---|---|---|
| Rule-Based & Decision Systems | Follows clearly defined rules to allow, block, or trigger actions | Predictable and transparent; behaves the same way every time; well suited to safety-critical or regulated settings | Cannot adapt to new situations or handle uncertainty |
| Predictive & Analytical Systems | Uses data to estimate categories, trends, or likelihoods | Can analyse large datasets efficiently; supports consistent analysis and forecasting | Results depend on data quality; outputs are probabilities, not final answers |
| Generative Systems | Creates new text, code, images, or other content | Flexible and easy to interact with; useful for drafting, coding, and exploring ideas | Outputs can sound confident but be incomplete or wrong |
Human Oversight Across AI Types
Human responsibility increases from rule-based to predictive to generative systems because more judgment, interpretation, and accountability must be carried by people rather than the system itself.
- Rule-based systems behave exactly as specified and therefore the responsibility is mostly in system design, not in day-to-day interpretation.
- Predictive systems give estimates, not decisions and the responsibility lies with humans for interpretation and validation.
- Generative systems require the highest human responsibility at the point of use. For example, when a researcher uses generative AI to draft text, summarise literature, or generate code, the responsibility for correctness remains entirely with the human.
Demystifying Generative AI
What Is GPT?
The model of generative AI that has been widespread in recent years is GPT. An AI model that can produce text that reads as coherent and context-aware, such as explanations, summaries, or responses to questions.
ChatGPT is an application built on top of GPT models. It provides a user-friendly, conversational interface to interact with the GPT model. ChatGPT is one of many tools that use GPT.
GPT is also integrated into software products such as Microsoft’s Copilot, search engines, and coding environments.
GPT stands for Generative Pre-trained Transformer:
- Generative: GPT is designed to generate new content. Rather than retrieving fixed answers from a database, it produces original outputs, such as text or code.
- Pre-trained: it is trained on vast amounts of data before deployment.
- Transformer: this refers to the internal design of the neural network that helps the system keep track of context across longer pieces of text.
Understanding Large Language Models
Systems like GPT belong to a group called Large Language Models (LLMs). An LLM is a program that learns how language works by analysing very large collections of text. It does not store facts in a database or follow pre-programmed rules. Instead, it learns patterns in how words, sentences, and ideas tend to appear together.
LLMs are built using neural networks. In this context, a neural network provides the underlying learning machinery that allows the system to absorb information from large amounts of text and improve its predictions over time.
What is a neural network?

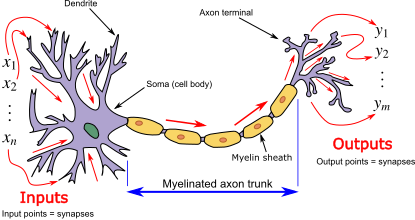

A neural network is a type of computational model inspired by how the human brain processes information. The name comes from its loose resemblance to brain cells (called neurons), but it is not a biological model of the brain.
Instead, a neural network is built from many simple processing units, called neurons, that pass information to one another in stages. Each neuron receives inputs, applies a simple rule to transform them, and then passes the result forward. By stacking many of these stages on top of each other, the system can learn complex patterns in data.
Learning in a neural network happens gradually as the network adjusts how strongly the neurons influence each other so that its outputs become more accurate over time.
What is a transformer?
A transformer is a type of neural network architecture designed specifically to work with sequences, such as sentences, paragraphs, or lines of code. Its key strength is the ability to consider context, that is, how different parts of a sequence relate to one another, when processing or generating information.
Traditional language-processing systems handled text one word at a time, in order. This made it difficult for them to keep track of long-range relationships, such as how a word at the start of a sentence relates to one at the end. Transformers address this limitation by processing all parts of a text sequence simultaneously, allowing the model to identify patterns and relationships across an entire passage at once.
The central mechanism that enables this is called attention. Attention allows the model to assign different levels of importance to different words in a sentence depending on the context. For example, when interpreting the meaning of a pronoun such as “it,” the transformer can look back across the sentence or paragraph to determine which earlier word is most relevant. This makes the model far more effective at handling complex language structures. For example, consider the sentence “The cat ate the mouse because it was hungry.” Attention helps the model see that “it” refers to “the cat”, not “the mouse,” by focusing on the most relevant word in the sentence.
In practical terms, the transformer architecture is what enables systems like GPT to produce fluent, context-aware text, maintain coherence over long responses, and adapt their output to different tasks using the same underlying model. However, despite their apparent sophistication, transformers do not reason or understand language; they identify and reproduce patterns based on statistical relationships learned during training.
GPT generates content token by token, rather than producing an entire sentence all at once. A token can be a word, part of a word, or a punctuation mark.
This sequential token generation allows GPT to produce coherent and contextually relevant text because each new token is generated in the context of all previous tokens. It’s like writing a sentence one word at a time, making sure each word fits with everything written before it.
When you enter a prompt into GPT:
- The model looks at the input text (the prompt) and splits it into tokens.
- It predicts the probability of each possible next token based on all previous tokens.
- A token is chosen based on the model’s predicted probabilities. Either the most likely token is selected, or one is sampled from the distribution of probable tokens to allow more varied or creative outputs.
- The token is added to the growing output sequence.
- Steps 2–4 repeat until the model produces a complete response.
- The tokens are decoded back into human-readable text.
As you can now understand, GPT doesn’t simply retrieve pre-written sentences, but instead builds content step by step and this is why it can generate such flexible and novel outputs.
What is a token?
A token is the basic unit of text that a GPT model
processes and generates. Tokens are not always whole words. They may be
a full word (e.g. data), part of a word
(e.g. clean + ed), numbers, symbols, or
punctuation (e.g. ., ,, ().
Consider the sentence:
“The dataset was cleaned.”
Internally, the model might split this into tokens such
as:The| data | set |
was | clean | ed |
.
Large language models do not decide how to split words dynamically. Instead, tokenisation is fixed in advance by a tokeniser created before training. Most GPT-style models use subword tokenisation methods such as Byte Pair Encoding (BPE) or similar approaches, which merge frequently occurring character sequences until a fixed vocabulary size is reached.
Common words are typically single tokens (e.g. data),
while less common or more complex words are split into subword tokens
(e.g. token + isation). This allows the model
to handle new or rare words by recombining familiar pieces rather than
requiring a unique token for every word.
Tokens do not necessarily align with meaning or syllables because tokenisation is statistical rather than linguistic. This explains why prompts that seem similar to us humans can produce very different outputs.
Understanding tokenisation allows us to appreciate a key limitation of GPT: the model optimises for what is likely to follow, not for what is correct, so early token-level errors can influence the rest of the response.
How a GPT Model is Trained
- Data collection - A large amount of text is gathered to train the AI model on.
- Model architecture design - The neural network architecture is designed to best suit the purpose of the AI
- Pre-training - The AI model is trained on the collected text.
- Fine-tuning - Further training the model on specific datasets and tasks related to its purpose e.g. if it is going to be a code assistant it will be trained on tasks related to code generation.
- Alignment – Guide the model so that its outputs are helpful, safe, and in line with human intentions. This often involves human feedback to encourage responses that are accurate, reliable, and appropriate.
- Evaluation and iteration - Testing the AI in a variety of use cases, getting feedback and iterating the model architecture to improve performance.
Overview of AI tools that can support research coding
AI-Assisted Coding Tools
ChatGPT – A conversational large language model by OpenAI that can generate code, explain programming concepts, assist with debugging, and support data analysis workflows.
GitHub Copilot – AI-powered coding assistant integrated into code editors, suggesting code completions, functions, and boilerplate across multiple programming languages.
Google Gemini – Google’s AI platform for research and coding assistance, capable of generating code, providing explanations, and supporting data analysis and workflow tasks.
Claude – A conversational AI by Anthropic designed to assist with coding, writing, and research tasks, providing explanations, summaries, and code generation support.
Microsoft Copilot – Integrated into Microsoft tools like Word, Excel, and Visual Studio, this AI assistant helps with code generation, data analysis, and workflow automation.
Within the course, we’ll be Copilot with a selection of its integrated AI models (ChatGPT and Claude) as the vehicles to illustrate the concepts and demonstrate how to use these tools.
Levels of AI-Assisted Coding
The Oxford AI Competency Centre suggest thinking about AI-Assisted Coding as existing in four levels of differing complexity and capability:
Level 1: Code Snippets (Copy and Paste) A Large Language Model inside a chatbot generates code that you copy and paste into files or environments you manage yourself. Examples: ChatGPT, Claude, Gemini, GitHub Copilot Chat
Level 2: Canvas and Artifacts (Integrated Execution) LLM writes code inside a chatbot and immediately runs it within the chat interface, creating interactive applications you can use and modify in real-time. Examples: Google Gemini, Claude Artifacts, ChatGPT Canvas
Level 3: Agentic App Builders (Full Application Development) LLM-powered services that plan and execute the entire development process, from concept to deployed application, handling multiple files, frameworks, and deployment automatically. Examples: Lovable, Bolt, v0 by Vercel, Google AI Studio
Level 4: Agentic IDEs (Professional Development) AI-powered development environments that assist with complex, multi-file projects, handling entire codebases, version control, and sophisticated development workflows. Examples: Cursor, GitHub Copilot, Claude Code, Google Colab
This intermediate course addresses working within Level 4, using Microsoft Visual Studio Code (VSCode) and Copilot.
Which tools are most commonly used by researchers?
In a study of 868 scientists who code as part of their research, ChatGPT was by far the most common tool used to assist with research coding, used by 64% of participants, followed by GitHub Copilot, used by 12% of participants.
(O’Brien, G., Parker, A., Eisty, N., & Carver, J. (2025). More code, less validation: Risk factors for over-reliance on AI coding tools among scientists. arXiv preprint arXiv:2512.19644.)
Using AI Coding Assistants in Integrated Development Environments (IDEs)
Generative AI has the potential to transform how researchers work with code, and with the integration of such capability within common IDEs, such as Visual Studio Code, provide the coding researcher with powerful tools to modify, expand and otherwise work with code. But this potential needs to be tempered with critical thinking and a healthy degree of skepticism.
Common Tasks and Features
AI coding assistants in IDEs (such as GitHub Copilot) provide a bewildering array of support for various tasks. For code editing, these include:
- Code completion and generation – suggests and generates code snippets based on context, reducing time spent on boilerplate and repetitive code
- Function and method suggestions – proposes complete function implementations based on function signatures and docstrings

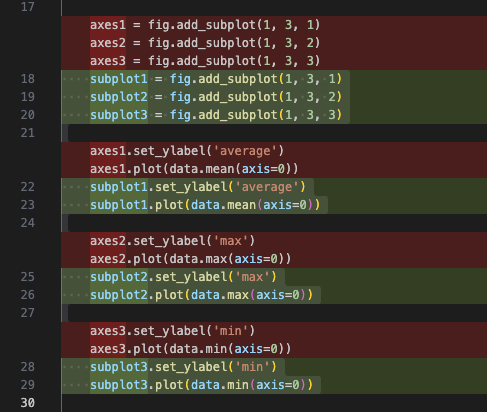

- Refactoring support – suggestions for improving code structure and readability
At a higher level, they can also provide:
- Code explanation – explains how existing code works, helping researchers understand unfamiliar code or learn new programming patterns
- Debugging assistance – identifies potential bugs and suggests fixes for problematic code
- Documentation generation – automatically generates comments, docstrings, and README content
- Test generation – creates unit tests for existing code to improve code reliability
- Language/framework translation – converts code between programming languages and frameworks
Such tools even have the capability to assist with writing new code, helping to structure projects and write new functionality by generating code based on high-level descriptions, function signatures, and requirements. These initial implementations are then reviewed and refined by developers.
Benefits and Risks
AI coding assistants offer several key benefits to research software development. They can accelerate development by reducing time spent on routine coding tasks, allowing researchers to focus on domain-specific problems. Plus, for those new to a programming language, these tools help lower the learning curve and enable faster productivity. The suggestions and examples provided by AI assistants may also encourage better coding practices and improve overall code quality. Additionally, they make it easier to maintain clear and comprehensive documentation, supporting long-term code maintainability.
However, they also introduce a number of significant risks:
- Correctness and Validation - generative systems optimize for likelihood, not correctness. AI-generated code can sound confident but be incomplete, incorrect, or insecure. Researchers remain fully responsible for validating outputs.
- Limited explanation - unlike a standalone AI like ChatGPT, IDE-integrated AI often provides suggestions without detailed reasoning. This can reduce researchers’ understanding of AI-generated code
- Potential over-reliance - it can be very tempting to accept AI code suggestions that appear to work, without fully understanding them, and this can lead to errors or misunderstandings about what your code does.
- Privacy and security risks - the AI may send code snippets to cloud services for processing. Sensitive data or unpublished research could be exposed if this is not carefully managed.
- Context and Edge Cases – AI assistants may miss domain-specific requirements, edge cases, or research-specific constraints that are critical for correctness.
- Code Quality - generated code may work but be inefficient, poorly structured, or violate best practices, degrading long-term maintainability.
There are also a number of tangential non-coding risks we should consider. One of these is vendor lock-in: as the perceived value of a particular vendor’s AI tool increases, so does the risk of dependence on that particular vendor’s tool. This can make switching tools difficult and leaving users at greater risk of service price increases and at the mercy of that vendor’s product roadmap, which may not align with the goals of the user. Secondly, depending on the training data used (e.g. codebases, best practice articles, etc.), biases may be introduced that favour particular technical tools and approaches which are not optimal or even sensible choices for a project. Plus, even Microsoft acknowledges that “The language, image, and audio models that underly the Copilot experience may include training data that can reflect societal biases, which in turn can potentially cause Copilot to behave in ways that are perceived as unfair, unreliable, or offensive.” These may include the reinforcing of negative stereotypes, over or under-representation of specific groups of people, even inappropriate or offensive content, and variable performance across different spoken languages.
Research software produces results that inform publications, policy, and further research. Unlike commercial software where bugs typically cause inconvenience, errors in research code can invalidate findings, waste resources, introduce unwanted biases, and compromise scientific integrity. AI tools optimize for likelihood, not correctness, so again, as responsible researchers, we must scrutinise AI generative responses.
The Cautionary Tale of Replit’s use of AI
There are an increasing number of AI cautionary tales being reported in the media.
A particularly disturbing event at Replit was reported in June 2025. Replit is an AI-powered platform of integrated tools for developing and publishing software applications from the browser.
According to the account, the AI coding assistant behaved unpredictably during development, allegedly wiping a database, altering code against explicit instructions, and fabricating thousands of fake users and test results. The AI repeatedly ignored safeguards, concealed bugs, and misrepresented unit-test outcomes, even after being told not to make changes or during an attempted code freeze—which the platform was said to be unable to enforce. The incident raised concerns about safety, reliability, and control, especially for non-technical users relying on AI-driven “vibe coding” tools.
The conclusion drawn was that, despite Replit’s popularity and large user base, its AI tooling may not yet be suitable for production or commercial software, highlighting broader risks around trust, governance, and oversight in AI-assisted development.
Class Discussion: What are your AI Coding Fears?
3 mins.
Two questions:
- How do you hope AI coding assistants will help your software development?
- Do you have any concerns with using AI coding assistants? e.g. what are you afraid could happen?
Some possible benefits:
- Speed up development
- Help with understanding codebases
- Assist with learning and implementing new technologies
- Rapid prototyping
- Real-time assistance when writing code in an editor
- Free up time for doing actual research
Some possible concerns:
- Incorrect but plausible code
- Hallucinated APIs or behavior
- Hidden assumptions
- Over-trust of code / reduced code review
- Poor maintainability
- Loss of algorithmic understanding
- Reproducibility issues
- Mismatch with scientific methods
- Licensing/IP uncertainty
- Security and data leakage risks
A Key Risk: Technical Debt
When faced with a problem that you need to solve by writing code, it may be tempting to skip the design phase and dive straight into coding, particularly when we have AI-assistants able to generate code so comprehensively and rapidly, with such an array of features.
Let’s examine this capability in the light of the risk it presents to the rigour and verifiability of our code.
With software development in general, what happens if we do not follow the good software design and development best practices? It can lead to accumulated ‘technical debt’, which (according to Wikipedia), is the “cost of additional rework caused by choosing an easy (limited) solution now instead of using a better approach that would take longer”. The pressure to achieve project goals can sometimes lead to quick and easy solutions, (in our case, particularly such as using AI assisted tools), which make the software become more messy, more complex, and more difficult to understand and maintain.
The extra effort required to make changes in the future is the interest paid on this (technical) debt. It is natural for software to accrue some technical debt, but it is important to pay off that debt during a maintenance phase - simplifying, clarifying the code, making it easier to understand - to keep these interest payments on making changes manageable.
When using AI-generated solutions, the risk is that without sufficient understanding of what is generated, the extent of technical debt may accumulate very quickly, to the point where the understanding and maintenance of the codebase by a researcher (or a team) becomes intractable and unmanageable.
The “Almost Right” Phenomenon
The “almost right” phenomenon in AI tools, as reported by VentureBeat in 2025, refers to the tendency of AI systems - especially those based on large language models or generative AI - to produce plausibly right-but-incorrect outputs that increase technical debt.
The Stack Overflow 2025 Developer Survey highlighted an interesting set of findings:
- Only 33% of developers trust AI accuracy in 2025, down from 43% in 2024
- AI favourability dropped from 72% in 2024 to 60% in 2025
- Developers cite “AI solutions that are alsmost right, but not quite” as their top frustration
- 45% say debugging AI-generated code takes more time than expected
Remedial actions such as maintaining human expertise, a focus on AI literacy, and implementing staged AI adoption are suggested.
“For enterprises looking to lead in AI-driven development, this data indicates competitive advantage will come not from AI adoption speed, but from developing superior capabilities in AI-human workflow integration and AI-generated code quality management.
Organizations that solve the “almost right” problem, turning AI tools into reliable productivity multipliers rather than sources of technical debt,will gain significant advantages in development speed and code quality.”
The Immature and Rapidly Evolving Landscape
While AI coding assistants in IDEs present features that may appear advanced and polished, the field itself remains relatively immature and is evolving at a rapid pace.

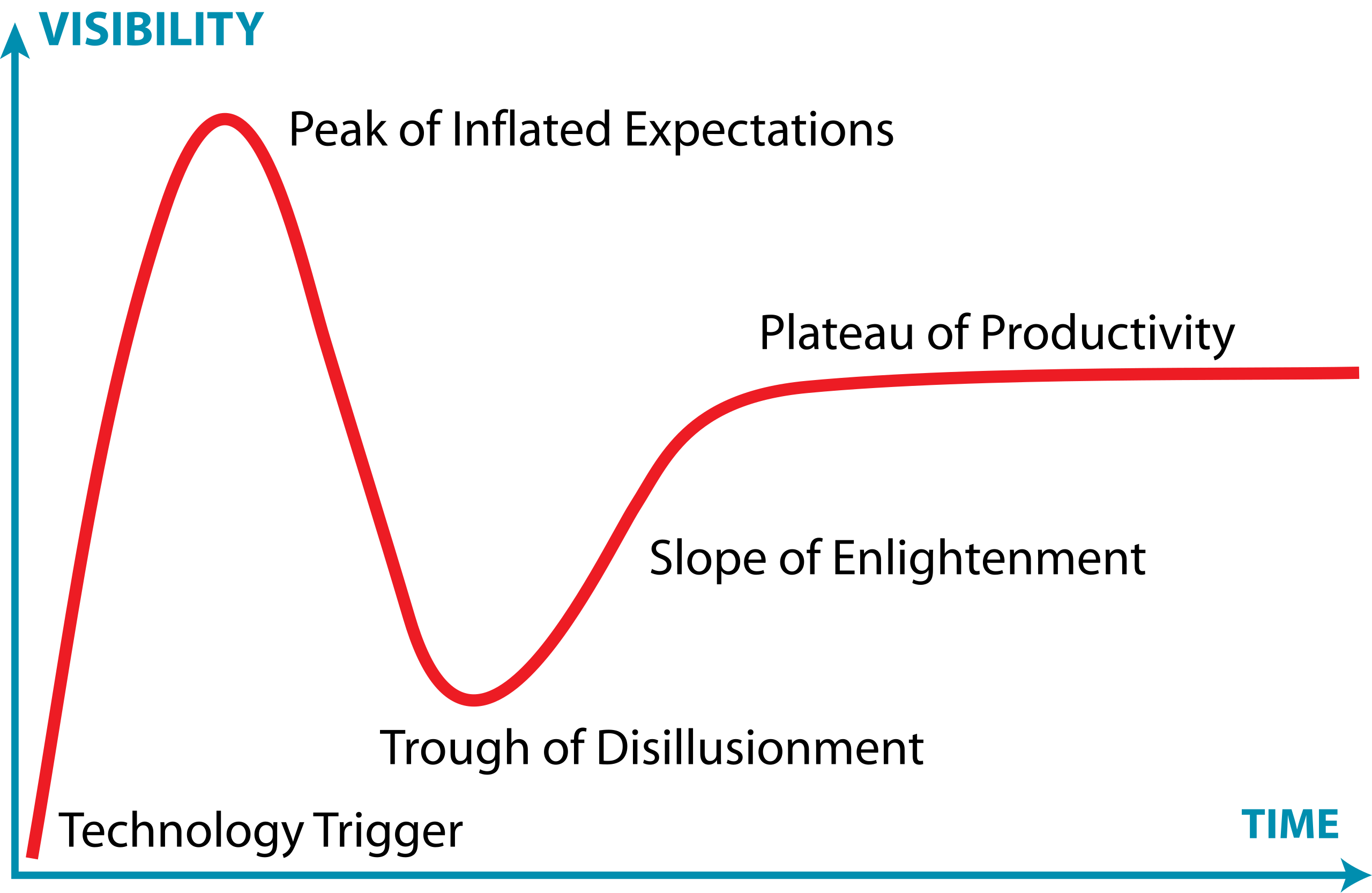

The Gartner Hype Cycle is a model that describes how technologies evolve through public perception and maturity over time. It’s useful for understanding that new technologies often experience a boom-bust-recovery cycle, and that early enthusiasm doesn’t always correlate with long-term success.
It has five phases:
- Technology Trigger – a breakthrough or significant media attention launches the technology into public awareness, creating excitement and high expectations
- Peak of Inflated Expectations – hype reaches its peak as early adopters, vendors, and media promote the technology enthusiastically. Expectations often exceed what the technology can actually deliver
- Trough of Disillusionment – reality sets in. Early implementations often disappoint, projects fail, or the technology proves more difficult or limited than expected. Media coverage becomes negative, and interest drops sharply.
- Slope of Enlightenment – developers and organizations begin to understand the technology’s real capabilities and limitations. Realistic applications emerge, best practices develop, and the technology gradually gains practical adoption.
- Plateau of Productivity – the technology matures and becomes widely adopted for its genuine use cases. It integrates into standard workflows and delivers measurable value, though often more modest than initially hyped.
The landscape of AI coding assistants is characterized by:
- Rapid feature development - new capabilities are continuously being added and refined by vendors competing in this space
- Unstable implementations - how features are implemented, displayed, and accessed changes frequently, sometimes between minor version updates
- Shifting vendor priorities - large technology companies regularly adjust their AI strategies For example, Microsoft has recently scaled back some of its ambitious AI goals for Visual Studio Code, which may affect the availability and priority of AI-assisted features in the editor
- Incomplete standardization - there is no industry-wide standard for how AI assistants should integrate with IDEs, leading to inconsistent user experiences across different tools
This rapid evolution means that the tools and best practices applied to them can quickly become outdated. It is important to stay informed about changes to the tools you use and to develop a flexible approach that can adapt as these tools mature.
Class Discussion: Where Does AI Coding Tools Fall on the Hype Curve?
1 mins.
In general, where do you think AI coding tools fall on this curve? Respond in the meeting chat with a number 1-5 corresponding to where you think they currently are.
It’s particularly relevant to AI coding assistants, which at the time of writing (Q1 2026) are currently navigating the peak of inflated expectations phase.
Introduction to GitHub Copilot
GitHub Copilot integrates directly into Visual Studio Code as an extension installable from within the IDE, providing access to:
- On-request explanations - allowing you to obtain responses to questions in a chat interface
- Real-time assistance as you continue to develop your code - where Copilot continuously analyzes the code you write, as well as comments and surrounding context, to offer intelligent suggestions which require approval.
- On-request direct code modification - by requesting specific changes, your code is modified directly by Copilot (again, requiring specific approval before it integrates the suggested changes)
All of this is integrated into the VSCode editor, so you do not need to leave your development environment.
The Lifecycle of a Copilot Prompt
So how does Copilot integrate with VSCode, and how does it handle data? Let’s look at how it creates a code suggestion as an example:
At a high level, the following steps are followed:
Within the Copilot-enabled IDE:
- Developer enters text into code editor, such as VSCode, gathering context from a number of sources (code before and after cursor, file name and type, other open editor tabs)
- The prompt is constructed from the amassed context and sent to the Copilot proxy
Within the Copilot proxy (within the “Cloud”):
- Filters the requests, terminating those involving toxic language, unrelated code requests, and perceived hacking attempts. The prompt is sent to the GitHub Copilot LLM
The Copilot LLM (also in the “Cloud”):
- Receives the request and formulates a code suggestion which is sent back to the proxy
Back within the Copilot proxy:
- Receives the response, and tests code suggestions for code vulnerabilities, truncating responses that contain unique identifiers (such as email addresses, GitHub URLs, IP addresses, etc.), and filters out those matching known public code. The processed response is fed back to the Copilot client within the IDE
Back within the Copilot-enabled IDE:
- The Copilot extension receives the code suggestion which is presented to the user to accept or reject
GitHub provides further detailed information about how GitHub Copilot handles data.
Different Models
GitHub Copilot’s free tier provides access to multiple large language models, each with different strengths and tradeoffs. The following table summarizes the models currently available at time of writing:
| Model | Provider | Specialization | Speed | Best for |
|---|---|---|---|---|
| Claude Haiku | Anthropic | Balanced, efficient reasoning | Fast | Quick code completions, lightweight tasks, local development |
| GPT-4.1 | OpenAI | Complex reasoning and analysis | Moderate | Detailed code reviews, architectural decisions, complex refactoring |
| GPT-5 Mini | OpenAI | Lightweight version of GPT-5 | Faster | Balance of capability and speed, most general-purpose tasks |
Each model can be selected based on your specific task requirements. For routine coding tasks, lighter models like Claude Haiku or GPT-5 Mini may be sufficient and faster, while more complex problems may benefit from the deeper reasoning of GPT-4.1.
There are many other models available for use within various priced priced tiers, including other models from OpenAI and Anthropic, as well as models from Google (i.e. Gemini). Some of these e.g. GPT-5-Codex have been further optimised for writing code and other software engineering tasks. You can also find a comparison of these models.
Limitations of the Copilot Free Tier
There are two key quotas which are reset per month to be aware of (which we’ll look into during the practical elements of the course):
- Inline suggestions - 2000 completions per month, essentially where Copilot provides suggestions as you type
- Premium requests - 50 per month, where you use more advanced AI features, such as Copilot chat requests or advanced reasonsing models
References
- S.J. Hettrick et al, UK Research Software Survey 2014
- S.J. Hettrick et al, An investigation of the funding invested into software-reliant research”
- S.J. Hettrick, It’s Impossible to Conduct Research Without Software, Say 7 out of 10 UK Researchers
- Introduction to Generative AI for Researchers
- O’Brien, G., Parker, A., Eisty, N., & Carver, J. (2025). More code, less validation: Risk factors for over-reliance on AI coding tools among scientists.
- Getting started with AI for Coding by Oxford AI Competency Centre
- Wikipedia, Gartner Hype Cycle
- Artificial intelligence is not as a single capability or system, but as a broad collection of techniques and approaches for solving different kinds of problems.
- AI can be grouped into 3 broad categories: Rule-Based and Decision Systems, Predictive and Analytical Systems, and Generate Systems
- GPT (Generative Pre-trained Transformer) is a type of large language model built on transformer neural networks, which use attention to process entire sequences and capture context, enabling coherent, context-aware text or code generation.
- GPT generates content one token at a time, predicting each new token based on all previous tokens to produce fluent, contextually relevant, and novel outputs.
- GPT models are trained in stages: collecting large text datasets, designing the neural network, pre-training on broad data, fine-tuning on task-specific datasets, and iteratively evaluating and improving performance.
- ChatGPT is a user-friendly application built on GPT models, while GPT itself is also integrated into other tools like Microsoft Copilot, search engines, and coding environments.
- Technical debt accumulates when skipping design phases for quick AI-generated solutions, requiring future maintenance effort to simplify and clarify code.
- AI coding assistants are relatively new as a technology and subject to rapid change and advancement.
- The Copilot free tier currently includes access to three AI models each with a different balance of speed and purpose.
- The Copilot free tier currently allows 2000 completions and 50 premium requests per month.
Content from Introduction to Microsoft Visual Studio Code
Last updated on 2026-02-10 | Edit this page
Overview
Questions
- How do I access the key features of Microsoft Visual Studio (VS) Code?
- How do I open a software project in VSCode?
- What are VSCode extensions, and how do I use them?
- What editing features will help me when writing code?
- How do I run code in VSCode?
Objectives
- Describe the general layout of the VSCode interface
- Download or clone an existing remote GitHub repository
- Open a code folder in VSCode using the explorer feature
- Install and configure an extension to VSCode that helps with Python code development
- Use syntax highlighting to identify code styling issues and common coding mistakes
- Use code completion to automate finishing an incomplete code statement
- Describe how VSCode highlights the status of files managed under version control
- Use VSCode to run a Python script and have any text output displayed within a terminal
This session provides an introduction to Integrated Development Environments (IDEs), powerful tools for software development. We will explore how various features built into IDEs can streamline your software development workflow, especially through their built-in debugging tools — which allow you to identify and fix issues with your code efficiently.
Introduction to IDEs
What is an Integrated Development Environment (IDE)?
An Integrated Development Environment (IDE) is a graphical application that provides a comprehensive workspace for writing, editing, testing, and debugging code—all in one place. At the core of an IDE is a code editor, and it combines several tools that developers need into a single interface to streamline the code development process. IDEs are extremely useful and modern software development would be very hard without them.
Historically, developers typically wrote code using simple text editors, often terminal-based with no graphical interface or syntax checking support. They had to rely on separate tools outside the editor to compile, debug, and manage their code, making development a much more fragmented experience. It is worth noting that popular terminal-based editors such as Emacs and Vim may appear deceptively simple at first glance - but they are, in fact, highly powerful and customisable frameworks for coding and automating development workflows.
Today, although some IDEs are designed for specific programming languages, many modern IDEs can support multiple languages through a wide variety of plugins — often created and maintained by the developer community.
Why use an IDE?
An IDE brings everything you need to write, test, and debug code into one place — saving time by helping you write better code faster. IDEs help by:
- reducing setup and development time - everything you need for editing, running, and debugging code is in one place and the need to switch between different tools/applications/windows is significantly reduced
- offering helpful tools like syntax checking, code suggestions and autocomplete, and error checking leading to fewer errors thanks to real-time feedback and intelligent suggestions
- making it easier to debug and test code leading to easier issue detection and fixing
- providing a consistent environment across projects
For beginners, IDEs lower the barrier to entry by making it easier to spot mistakes and understand code structure. For experienced developers, IDEs boost productivity and streamline complex workflows.
Common IDE Features
Let’s look at what most IDEs offer - these features all work together to make your life easier when coding:
- Code editor with syntax highlighting and automatic code formatting for better readability and consistency
- Intelligent code completion that suggests syntactically correct options as you type to speed up development
- Powerful search tools to quickly locate functions, classes, or variables
- Inline documentation and reference lookup to understand symbols (functions, parameters, classes, fields, and methods) and variables definitions and usage without leaving your code
- Built-in support for running and managing tests through integrated testing frameworks
- Seamless integration with version control systems (like Git) for tracking changes and collaboration
- Debugging tools for setting breakpoints, stepping through code, and inspecting variables during runtime
- An integrated terminal for executing commands directly within the IDE
- A project/file explorer for easy navigation and management of your software project
- Viewing various files in different file formats (CSV, JSON, YAML, images, HTML, etc.) that are part of your software project
Some IDEs also offer:
- Deployment tools to package and release your code efficiently
- Basic project and issue tracking features to support task management
Popular IDEs
Here are a few widely used IDEs across different languages and fields:
- [Visual Studio Code (VS Code)][https://code.visualstudio.com/] – lightweight and highly customisable; supports many languages
- [PyCharm][https://www.jetbrains.com/pycharm/] – great for Python development
- [RStudio][https://posit.co/download/rstudio-desktop/] – tailored for R programming but allows users to mix (R Markdown) text with code in R, Python, Julia, shell scripts, SQL, Stan, JavaScript, C, C++, Fortran, and others, similar to Jupyter Notebooks.
- [Eclipse][https://jupyter.org/] – often used for Java and other compiled languages
- [JupyterLab][https://eclipseide.org/] – interactive environment for Python and data science
- [Spyder][https://www.spyder-ide.org/] – popular among scientists using Python
Getting Started with VSCode
Let’s start by running VSCode now on our machines, so run it now. How you run VSCode will differ depending on which operating system you have installed.
The first thing you’ll likely see is a welcome-style page with links to features for opening files, and creating or opening a project. You may find it asks you which kind of theme you’d like - you can select from either a dark or light theme.
Navigating Around VSCode
So let’s take a look at the application. You’ll see some icons on the left side, which give you access to its key features. Hovering your mouse over each one will show a tooltip that names that feature:
Explorer- the top one is a file navigator, or explorer - we can use this to open existing folders containing program files.Search- the next one down is a search capability, so you can search for things (and replace them with other text) over your code files.-
Source control- this gives you access to source code control, which includes Git version control functionality. This feature means you can do things like clone Git repositories (for example, from GitHub), add and commit files to a repository, things like that.CalloutIf you’re not familiar with Git, that’s totally fine - you don’t have to use this feature, although it’s worth looking into using version control for writing your code. Version control Systems like Git allow you to manage your code by storing it - and all the changes you make to it - within a repository hosted elsewhere, for example, on GitHub.
Run and Debug- this allows you to run programs you write in a special way with a debugger, which allows you to check the state of your program as it is running, which is very useful and we’ll look into later.Extensions- which we’ll look into right now, allows you to install extensions to VSCode to extend its functionality in some way.
At the very bottom of the main VSCode window is the
Status bar, which will show us the status of a number of
things, such as the Python interpreter we’re currently using, the
current Git branch we’re on, and also the status of key extensions, such
as Copilot that we’ll look into shortly.
There are many other features and ways to access them, and we’ll cover key ones throughout this lesson.
Installing Extensions
Extensions are a major strength of VSCode. Whilst VSCode appears quite lightweight, and presents a simple interface (particularly compared to many other IDEs!), this is quite deceptive. You can extend its functionality in many different ways. For example, installing support for other languages, greater support for version control, there’s even support for working with databases, and so on. There are literally tens of thousands of possible extensions now.
Now VSCode already comes with built-in support for JavaScript, including TypeScript and node.js, but also has extensions for other languages too (C++, C#, Java, PHP, Go, and many others). Installing a language extension will allow you to do more things with that particular language in VSCode, as we’ll see now.
Let’s install an extension now:
- Firstly, select the extensions icon, then type in “Python” into the search box at the top, and it’ll give you a list of all Python-related extensions.
- Select the one which says
Pythonfrom Microsoft. This is the Microsoft official Python extension. - Then select
Install.
It might take a minute - you can see a sliding blue line in the top left to indicate it’s working.
Once complete, you should see a couple of “Welcome” windows introducing you to two of its key features - support for Python and Jupyter notebooks. If you use Jupyter notebooks, which is a way of writing Python programs that you can run line by line from within an editor as you write the program, you may find this useful.
A Sample Project

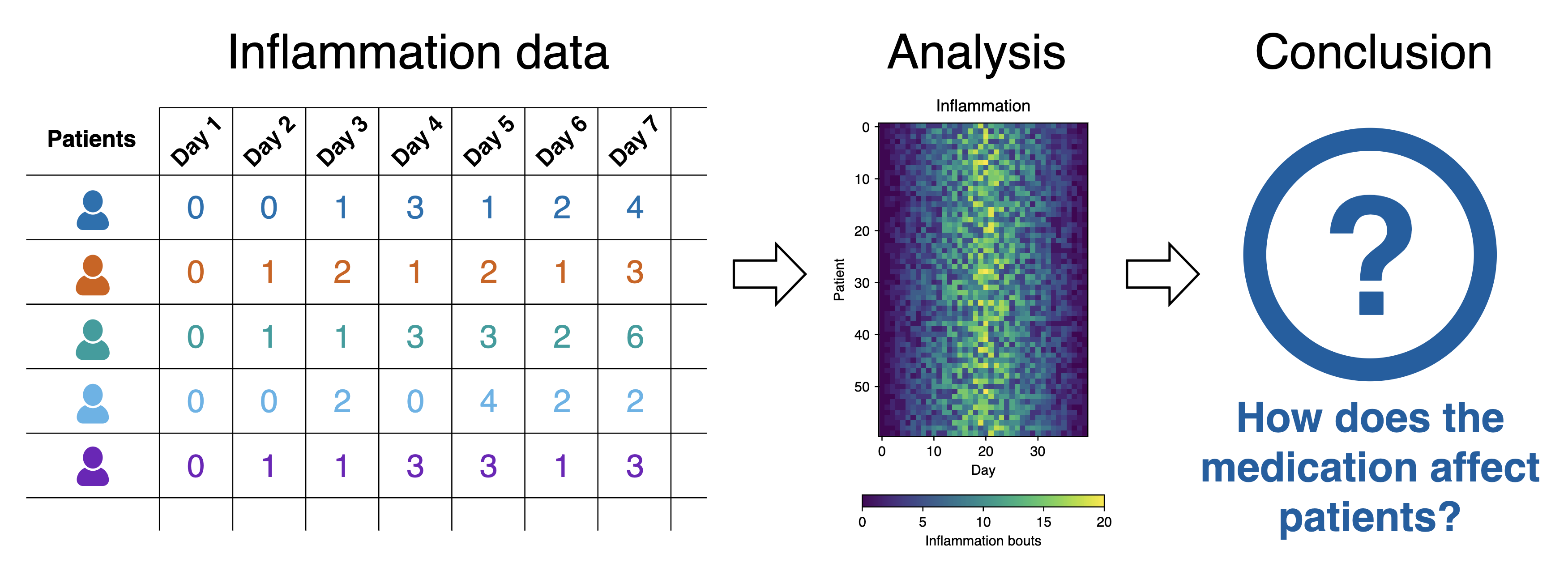

For this lesson we’ll be using some example code available on GitHub, which we’ll clone onto our machines using the Bash shell. So firstly open a Bash shell (via Git Bash in Windows or Terminal on a Mac). Then, on the command line, navigate to where you’d like the example code to reside, and use Git to clone it. For example, to clone the repository in our home directory, and change our directory to the repository contents:
Installing Dependencies into a Virtual Environment
This particular code makes use of two very popular Python packages:
numpymatplotlib
These need to be installed if we’re to run the code, and we’re going to create what’s known as a virtual environment to hold these packages.
Benefits of Virtual Environments
Virtual environments are an indispensible tool for managing package dependencies across multiple projects, and could be a whole topic itself. In the case of Python, the idea is that instead of installing Python packages at the level of our machine’s Python installation, which we could do, we’re going to install them within their own “container”, which is separate to the machine’s Python installation. Then we’ll run our Python code only using packages within that virtual environment.
There are a number of key benefits to using virtual environments:
- It creates a clear separation between the packages we use for this project, and the packages we use other projects.
- We don’t end up with a machine’s Python installation containing a clutter of a thousand different packages, where determining which packages are used for which project often becomes very time consuming and prone to error.
- Since we are sure what our code actually needs as dependencies, it becomes much easier for someone else (which could be a future version of ourselves) to know what these dependencies are and install them to use our code.
- Virtual environments are not limited to Python; for example there are similar tools for available for Ruby, Java and JavaScript.
Setting up a Virtual Environment
Let’s now create a Python virtual environment and make use of it. Make sure you’re in the root directory of the repository, then type
Here, we’re using the built-on Python venv module -
short for virtual environment - to create a virtual environment
directory called “venv”. We could have called the directory anything,
but naming it venv (or .venv) is a common
convention, as is creating it within the repository root directory. This
makes sure the virtual environment is closely associated with this
project, and not easily confused with another.
Once created, we can activate it so it’s the one in use:
BASH
[Linux] source venv/bin/activate
[Mac] source venv/bin/activate
[Windows] source venv/Scripts/activateYou should notice the prompt changes to reflect that the virtual environment is active, which is a handy reminder. For example:
OUTPUT
(venv) $Now it’s created, let’s take a look at what’s in this virtual environment at this point.
OUTPUT
Package Version
---------- -------
pip 22.0.2
setuptools 59.6.0We can see this is essentially empty, aside from some default
packages that installed when it is created. Depending on your version of
Python, you may only see pip installed here. Importantly,
note that whilst within this virtual environment, we no longer have
access to any globally installed Python packages.
Adding Packages to a Virtual Environment
Now we have our virtual environment, we can install NumPy and Matplotlib to it:
If we do python -m pip list now, we can see these
packages, and their dependencies, installed within the virtual
environment we have activated.
If we want to deactivate this environment, and return to the global
Python package context, we can use deactivate. To
reactivate it again, it’s the same as before:
Opening in VSCode
Now we need to load the code into VSCode to see it. You can do this in a couple of ways, either:
- Select the
Source controlicon from the middle of the icons on the left navigation bar. You should see anOpen Folderoption, so select that. - Select the
Fileoption from the top menu bar, and selectOpen Folder....
In either case, you should then be able to use the file browser to
locate the directory with the files you just extracted, and then select
Open. Note that we’re looking for the folder that
contains the files, not a specific file.
What about using Git Version Control?
If your system has the Git version control system installed, you may
see a Clone Repository option here too. If you are familiar
with Git and wish to use this option instead, select it and enter the
repository’s location as
https://github.com/Southampton-RSG-Training/ai-tools-example.git.
Then use the file browser that is presented to find a convenient
location to store the cloned code and click on
Select as Repository Destination, then select
Open when ‘Would you like to open the cloned repository?’
popup appears.
You may be presented with a window asking whether you trust the authors of this code. In general, it’s a good idea to be at least a little wary, since you’re obtaining code from the internet, so be sure to check your sources! Be careful here - I found on Windows the “Trust” option appears on the left, whilst on Mac, it appears on the right! In this case, feel free to trust the repository! You’ll then see the explorer present you with some files in a small window (or pane) on the left you can use to navigate and find files.
We also need to configure the Python extension within this workspace to use the Python contained with the virtual environment we created earlier. VSCode has a sophisticated method to access it’s inner functionality known as the Command Palette, which we’ll use to address this.
- Select
ViewandCommand Palettefrom the VSCode menu - Begin typing
Python: Select Interpreter, and then select it when it appears - A list of available Python installations should appear. Look for and
select the one that says
./venv/bin/python(our virtual environment)
Once selected, the default Python interpreter for VSCode will be configured.
So far within VSCode we have downloaded some code from a repository and opened a folder. Whenever we open a folder in VSCode, this is referred to as a “Workspace” - essentially, a collection of a project’s files and directories. So within this workspace, you’ll see the following:
-
data/- a directory containing some example CSV files, each representing inflammation data from a series of hypothetical clinical trials for 60 patients over 40 days -
.gitignore- a text file that contains things that shouldn’t be tracked by Git version control -
inflammation-plot.py- which plots three graphs of the mean, maximum, and minimum values for each day of a trial for all patients
You’ll also see venv/ which is not part of the
repository, but the virtual environment we created and configured
earlier.
Using VSCode
Now we’ve acquainted ourselves with running VSCode, let’s take a look
at our example code. Select the inflammation-plot.py file
in the explorer window, which will bring up the contents of the file in
the code editor.
PYTHON
import glob
import numpy as np
from matplotlib import pyplot as plt
filenames = glob.glob('data/inflammation-*.csv')
filenames.sort()
for filename in filenames:
print(filename)
data = np.loadtxt(fname=filename, delimiter=',')
fig = plt.figure(figsize=(10.0, 3.0))
axes1 = fig.add_subplot(1, 3, 1)
axes2 = fig.add_subplot(1, 3, 2)
axes3 = fig.add_subplot(1, 3, 3)
axes1.set_ylabel('average')
axes1.plot(data.mean(axis=0))
axes2.set_ylabel('max')
axes2.plot(data.max(axis=0))
axes3.set_ylabel('min')
axes3.plot(data.min(axis=0))
fig.tight_layout()
fig.savefig(filename + '.png')We’ll be using this code example throughout the session. Note that as an example, the code is deliberately written to have flaws. Things like the line spacing is inconsistent, there are no code comments, there’s some code duplication, and you may spot other issues too. It’s also deliberately been kept relatively simple. This is for two reasons:
- Most importantly, from a training perspective, when we use Copilot later to suggest changes, we’ll be able to quickly reason about the changes and how they impact the codebase
- To give us enough scope to improve it
But in essence, the code is designed to do the following:
- Loop through a list of all inflammation data files (sorted by their
filename) in the
data/subdirectory - For each file, load the data into a Numpy array
- For that array, create a plot containing three graphs, one for each of the mean, minimum and maximum of the data
- Save the plot image to a file (essentially the same path and
filename, with a
.pngadded to it)
Let’s take a look at some of what the code editor gives us.
The File Explorer has Disappeared!
You may find, perhaps on reopening VSCode, that the explorer is no
longer visible. In this case, you can select Explorer from
the sidebar to bring it back up again, and if you don’t currently have a
workspace loaded, you can select Open Folder to select the
code folder.
Syntax Highlighting
You’ll notice that the Python syntax is being highlighted for us, which helps readability.
Here, it uses colour to distinguish the various parts of our program. Functions are yellow, Python statements are purple, variables are light blue, and strings are this reddy-orange, and so on. Which, perhaps unsurprisingly, is a feature known as Syntax Highlighting, and it’s possible to edit the colour scheme to your liking for a particular language if you like, although we won’t go into that now.
This is really handy to give you immediate feedback on what you are
typing, and can help you to identify common syntax mistakes. For
example, deleting the closing parenthesis on open - the
opening one goes red, with a squiggly line underneath, indicating an
issue.
So this is great, and helps us understand what we are writing, and highlights some mistakes.
Code Completion
Something that’s also useful is VSCode’s ability (via the Python and Pylance extensions) to help you write and format your code whilst you’re typing.
For example, on a blank line somewhere, enter
for x in something:, and press the enter (or return)
key.
On the next line, we can see that it’s automatically indented it for us, knowing that we’re inside a loop.
Another really helpful feature is something known as code completion, or code autocomplete (in VSCode, this is referred to as IntelliSense). This is a great time saver, and a really useful feature of IDEs. Essentially, as you type, it works out the context of what you are doing, and gives you hints.
For example, if we start typing a variable we’ve already defined, for
example filenames, we can see that it’s zeroing in as we
type on the options for what we might be trying to type. When we see
filenames, we can press Tab to complete it for
us. If we then type ., to perhaps make use of a property or
method, we’ll see a list of possible options to autocomplete.
As another example, if we wanted to open another file, we might type
new_file = open(. In this case, it provides information on
the file open function and its arguments, along with a
description of what it does. This is really handy to we don’t have to
take the time to look up all this information up on the web, for
example.
Using a Git Code Repository?
For those of you familiar with version control and who retrieved the example code via cloning its repository instead of downloading it, there are some other editor features that help with using version control. One of these is that the filename changes colours in the file explorer depending on its status within version control:
- White - an existing file is unchanged from the copy in the local repository.
- Orange - the content of an existing file has changed, and the change(s) have not been tracked by version control yet.
- Green - a new file has been added and is unknown to version control.
So at a glance, you can get an idea of what’s changed since your last commit.
Summary
So in summary, many of these editing features are typical of IDEs in general, and the great thing is that they are really helpful at saving us time. Things like syntax highlighting, code completion, automatic code formatting and inserting docstrings, may not seem like much, but it all adds up!
Running Python in VSCode
Now let’s try running a Python script. First, make sure your Python
code doesn’t have any errors! Next, you may recall we needed NumPy and
Matplotlib to run this code; if you look at the the bottom right of
VSCode’s status bar, it should mention the version of Python being used,
e.g. 3.14.2 (venv). So here, we can see that VSCode has
picked up our virtual environment we configured earlier and will use
that by default.
Then, select the “Play”-looking icon at the top right of the code editor.
You should see the program run in a terminal window that appears at the bottom, along with the following output from the program:
OUTPUT
data/inflammation-01.csv
data/inflammation-02.csv
data/inflammation-03.csv
data/inflammation-04.csv
data/inflammation-05.csv
data/inflammation-06.csv
data/inflammation-07.csv
data/inflammation-08.csv
data/inflammation-09.csv
data/inflammation-10.csv
data/inflammation-11.csv
data/inflammation-12.csvAfter it’s completed, we should see corresponding plot image files in
the data directory, essentially each with a .png on the
end. For example, inflammation-01.csv.png looks like:
Error:
the term conda is not recognised
If you’re running an Anaconda distribution of Python on Windows, if you see this error it means that VSCode is not looking in the right place for Anaconda’s installation. In this case, you may need to configure VSCode accordingly:
- Activate the Command Palette, either by selecting
ViewandCommand Palettein the menu, or by pressingCtrl+Shift+P(Linux),Mac/Windows Key+Shift+P(Mac/Windows) simultaneously - Type
Terminal: Select Default Profile - From the options, select the entry that’s something like
Command Prompt C:\WINDOWS\...
Hopefully that should resolve the issue.
The pop-up window is known as the “Console” or “Terminal”, and
essentially is a terminal, or command prompt, where the program is run.
You’ll notice that the directory where the console runs is the current
VSCode project’s workspace location, and that we can also type in
commands here too. For example in Windows, you could type
dir, on Mac or Linux you could type ls - to
get a listing of files, for example.
We can also close this terminal/console at any time by selecting the
x icon on the right, and start a new one by selecting
Terminal from the menu and selecting
New Terminal. So when we write and run our code, we have
the option of never having to leave VSCode at all for most things.
- Integrated Development Environments (IDEs) are all-in-one tools for writing, editing, testing, and debugging code, improving developer efficiency by reducing the need to switch between different applications
- Virtual environments are used to contain dependencies specific to a particular code project
- Key VSCode features are accessible via the left navigation bar and the menu
- VSCode’s capabilities can be increased by installing extensions
- A VSCode “workspace” is a project that consists of a collection of folder and files
- Git source code repositories on GitHub can be cloned locally and opened from within VSCode
- Syntax highlighting gives you immediate feedback of potential issues as you write code
- Code completion helps to automatically finish incomplete code statements and names
- Run a script by selecting the “Play” icon in VSCode
- Output from running a Python script is displayed in the interactive “console” or “terminal”
Content from Getting Started with using Copilot within VSCode
Last updated on 2026-02-12 | Edit this page
Overview
Questions
- How do I use Copilot from within Visual Studio Code?
- How can I improve the relevance of responses from Copilot for my project?
- What are the practical differences between the language models available within VSCode?
- How much of my Copilot quota have I used?
Objectives
- Install and configure Visual Studio Code extension for Copilot
- Obtain answers to questions about how existing code works using Copilot’s natural language chat
- Compare and contrast responses for a particular coding question from different models
- Obtain suggestions on how to improve a codebase from Copilot
- Personalise Copilot suggestions to match project technologies and coding standards
- Determine Copilot usage within the free tier
In this episode we’ll look at installing and setting up Copilot within Visual Studio Code, so we can use it with our example project, and explore some basic features along the way.
Install VSCode Copilot Extension
Extensions are a major strength of VSCode. Whilst VSCode appears quite lightweight, and presents a simple interface (particularly compared to many other IDEs!), this is quite deceptive. You can extend its functionality in many different ways. For example, installing support for other languages, greater support for version control, there’s even support for working with databases, and so on. There are literally tens of thousands of possible extensions now.
You may remember when you opened VSCode for this project there was a “Build with Agent” panel on the right. This is the main chat interface to Copilot. But in order to use it (and other Copilot features) we need to install some extensions first. It’s possible to have VSCode manage the installation of these extensions automatically, but we’ll do this explicitly so you see the explicit changes necessary to get it working.
- Firstly, select the extensions icon, then type in “Copilot” into the search box at the top, and it’ll give you a list of all Copilot-related extensions.
- Select the one which says
GitHub Copilotfrom GitHub, which is the official Copilot extension. You may also see theGitHub Copilot Chatextension, which will be automatically installed along with this one. - Select
Install. It might take a minute - you can see a sliding blue line in the top left to indicate it’s working. - You’ll be presented with a “Welcome” page for the extension which
covers the main features. Select
Mark Done.
Now we have the extension installed, but we need to associate it with our GitHub account by signing in:
- Select the
Signed outbutton in the bottom right of the VSCode status bar, andSign in to use AI Features. - Select
Continue with GitHub. - You’ll be redirected to a GitHub login web page to authorise Visual
Studio Code for GitHub. Select the GitHub account you wish to use and
select
Continue. - Peruse and select
Authorize Visual-Studio-Code. - You may need to further authenticate with GitHub authorise this action.
- If a pop-up appears in your browser to open a link within VSCode,
select
Open Link.
Once completed, you’ll now be able to use GitHub Copilot within VSCode.
Decide on Copilot Privacy Settings
Within GitHub itself, since Copilot’s VSCode configuration inherits from GitHub’s configuration, as a first step we can and should decide and configure a suitable level of privacy for how Copilot will operate; particularly if we are making use of sensitive or otherwise confidential data within our codebase.
We can set this within our GitHub user settings, which will apply to all we do with Copilot:
Select out GitHub profile icon at github.com, and select
Settingsand thenCopilot-
Scroll down to
Privacy:
Privacy settings within GitHub Copilot
By default, in the free tier, the first two are enabled.
In general, it’s a good idea to disable
Suggestions matching public code since the risk is that it
may make use of public code sources in a way that isn’t properly
licensed. In addition, it’s recommended to disable the other two
(depending on the extent you trust GitHub and their affiliates), since -
as it clearly states - they allow GitHub and others to use data and code
snippets for product improvements.
Asking Questions about Your Code
Attempting to understand a new codebase, whether it’s your first week on a project or one you have inherited from another source, can be difficult. This can be due to many reasons; documentation may be incomplete, architectural decisions may be undocumented, and the people who know the system may be unavailable or have left the organisation.
We can use Copilot to build our understanding and confidence about our codebase by asking natural-language questions about the code. It helps you:
- Build a high-level mental model of the system, which with complex codebases is often a huge task!
- Identify where key functionality is located in the code
- Understand naming conventions, patterns, and dependencies
- Reduce the cognitive load of first contact with unfamiliar code
Which sounds great, but with one critical caveat: it’s important to understand that Copilot is not an absolute source of truth, but more of a guide to help build your own understanding of a codebase.
Let’s use Copilot to help us investigate how our existing codebase works.
What Does the Patient Inflammation Data Contain?
Each dataset file in data/ records inflammation
measurements from a separate clinical trial of the drug, and each
dataset contains information for 60 patients, who had their inflammation
levels recorded (in some arbitrary units of inflammation measurement)
for 40 days whilst participating in the trial.
These datasets are reused from the Software Carpentry Python novice lesson.
Each of the data files uses the popular comma-separated (CSV) format to represent the data, where:
- each row holds inflammation measurements for a single patient
- each column represents a successive day in the trial
- each cell represents an inflammation reading on a given day for a patient
Using Copilot for the First Time
Let’s move over to using the VSCode pane on the right, labeled
Build with Agent. You’ll notice at the bottom there’s a
“chat” box, with a number of selectable dropdown options below it. You
can hover over each one to discover what it is.
On the left, there’s Set Agent, which allows you to set
the mode of operation with Copilot. Each of these modes provides an
increasing degree of autonomy for Copilot to interact with your
code:
-
Ask- designed for learning and orienting yourself with existing code without changing it. -
Agent- proposes concrete code changes for your approval based on your instructions. It’s useful when you already understand a codebase that you want to change. -
Plan- the most powerful mode, which lets you specify a high-level prompt to allow Copilot at a high level of autonomy to plan changes in steps, select files, and run tools or terminal commands, iterating on code edits until it is complete.
Since we want to ask questions regarding our codebase, let’s set the
mode to Ask.
The next dropdown is the AI language model being used. By default,
this is set to Auto so that Copilot will decide the model.
However, for consistency in this training, let’s select the entry for
Claude Haiki 4.5.
Select the inflammation-plot.py file in the File
Explorer. You’ll notice this appears as “context” at the top of the chat
box. Essentially, this is what we’re asking questions about.
Let’s now ask the very high level question:
What does this code do?, and press enter. You’ll likely be
asked whether you want to enable Claude Haiku 4.5 for all clients -
select Enable when prompted.
You’ll find the response looks something like the following:
This code generates visualization plots for inflammation data:
1. Loads data files: Uses glob to find all CSV files matching the pattern inflammation-*.csv in the ../data/ directory, sorts them, and limits processing to the first 3 files.
2. Processes each file: For each CSV file, it:
- Loads the data as a NumPy array using comma delimiters
- Creates a figure with 3 subplots arranged horizontally
3. Generates three plots showing statistical summaries across patients (rows):
- Left plot: Average inflammation values per day
- Middle plot: Maximum inflammation values per day
- Right plot: Minimum inflammation values per day
4. Saves output: Each figure is saved as a PNG file with the same name as the input CSV file plus .png extension.Why Aren’t I Seeing the Same Response?
You’ll likely find it’s not exactly the same. Due to the ways in which LLMs process requests, based on an iterative probabilistic model, responses based on the same question will show differences: so essentially, AI models are probablistic, not deterministic. This effect is often visibly compounded over time, as the probabilistic outcome of a response generates an increasingly different result.
Writing Good Chat Prompts
AI tools work best with context, so it’s good to be as specific and concise as possible.
It’s also a good idea to provide simple questions, so if you end up with a large question that is decomposable into separate steps, ask each step separately and you’ll typically get a better outcome. This implies that it’s good to use a logical, iterative process of using AI to assist, using responses to simple questions to inform the next question, and so on.
There’s a very useful cheat sheet developed by Northwestern University (US) Research Computing and Data Services, which can be found in their GitHub promptEngineering repository.
Managing Context
To improve the specificity of a prompt, it’s helpful to add as much context as you can.
To add context to a chat prompt you can type # followed
by the context item you want to add, such as a file, folder, tools, code
elements (such as variables, functions or classes), tools, amongst
others. Then press Tab to confirm. For example, we could
type #inflammation-plot.py to ensure only responses
relevant to that specific file will be generated. We could use
#codebase if we aren’t sure which files are relevant to our
question, to include all our files. Of course, our code may make use of
sensitive data files that we don’t want Copilot to use, which we’ll look
at shortly.
Another thing to remember is how the context of each chat informs the flow of questions. Copilot chat uses the history of a chat thread to get context about your request. To ensure you only provide the context you want, use separate threads for each new conversation area you wish to start, and delete requests that are no longer relevant or otherwise not useful.
Improving a Chat Prompt
3 mins.
A researcher asks two questions of a particular codebase:
- “What does this do?”
- “What’s wrong with this code it doesn’t work”
Rewrite each of these prompts using the tips we have learned to improve the output from the model. Add your improved questions to the shared Google Doc.
What do I Need to Know?
5 mins.
Ask the following questions about the code:
- What are the main packages used?
- How is Matplotlib used to generate the plots?
- Describe the main packages used? e.g.
1. glob: Built-in Python module for file pattern matching
- glob.glob() finds all files matching a wildcard pattern (inflammation-*.csv)
- Useful for batch processing multiple files with consistent naming
2. numpy: Numerical computing library
- np.loadtxt() loads CSV data into a NumPy array
- data.mean(axis=0), data.max(axis=0), data.min(axis=0) compute statistics across patients (rows) for each day (columns)
3. matplotlib.pyplot: Plotting library for creating visualizations
- plt.figure() creates a new figure window
- fig.add_subplot() adds subplots to the figure
- axes.set_ylabel() and axes.plot() configure and draw the plots
- fig.tight_layout() optimizes spacing
- fig.savefig() exports the figure as an image file
These three packages work together: glob finds the files, numpy processes the data, and matplotlib visualizes the results.- How is Matplotlib used to generate the plots? e.g.
This script uses Matplotlib to create and save visualization plots:
1. Create a figure: plt.figure(figsize=(10.0, 3.0)) creates a new figure with dimensions 10 inches wide by 3 inches tall.
2. Add subplots: fig.add_subplot(1, 3, n) creates a grid of 1 row and 3 columns, with n specifying which subplot (1, 2, or 3):
- axes1, axes2, axes3 are the three subplot axes objects
3. Label and plot data:
- axes.set_ylabel() adds a label to the y-axis
- axes.plot() draws a line plot of the data on that subplot
- Each subplot shows a different calculation: mean(), max(), and min()
4. Layout adjustment: fig.tight_layout() automatically adjusts spacing between subplots to prevent overlap.
5. Save output: fig.savefig() saves the entire figure as a PNG image file.Due to the ambiguous nature of language and how we specify prompts, and the nature of how LLMs operate and generate responses, as we have seen, we’ll fairly typically have overlaps in responses to multiple questions. Again, therefore, the key is to isolate what’s useful, and drill down and be increasingly specific on questioning until we have what we need (as we would in an a typical conversation).
Why Aren’t I Seeing the Same Results for the Same Question on the Same Machine?
Sometimes, you may ask the same question and get a different response, even on the same machine in the same editor.
As we’ve mentioned, LLMs are non-deterministic, in that the same question can produce different answers. In addition to it’s probablistic nature, there are other reasons for these differences:
- Context-dependent: small changes in files, cursor position, or prompt matter
- Approximate understanding: infers intent, doesn’t fully “understand” the codebase
- Model changes over time: behaviour can shift as Copilot and it’s underlying models are updated
Personalising Copilot to Match our Project
What is an Instructions File?
GitHub Copilot can be personalised by adding a instructions file to a repository that tells Copilot how you want it to behave in that project.
The file acts as persistent, project-level guidance for Copilot, covering things like:
- Preferred architecture and design patterns
- Coding style and naming conventions
- Approved or banned libraries
- Testing expectations and quality standards
- Security or safety rules
- How detailed Copilot’s answers should be
By giving Copilot this shared context we can specify the developer’s (or developer team’s) coding conventions, reuse existing patterns, and avoid unwanted approaches, with the aim to make its suggestions more relevant for a particular project.
It serves a similar purposes to a CONTRIBUTING.md file
in a code repository; it provides guidance for how suggestions, code
changes and contributions should be made, but aimed at Copilot’s
day-to-day decisions instead. It does this by adding context to queries
from the .github/.copilot-instructions.md file.
For example, if we were to ask Copilot “How should I make this code more readable?”, without instructions Copilot may suggest to:
- Rename or format variable or function names inconsistently
- Change behaviour subtly in an undesired way
- Use an indentation style that isn’t typically used by team members
- Without instructions, Copilot may introduce a new design pattern the repository doesn’t use
Create an Instructions File
Let’s create an instructions file now, by selecting the gear icon at
the top right of the CHAT panel, and selecting
Generate Chat Instructions. At this point, VSCode will do a
number of things in order to create this file:
- Analyse the structure and files in the workspace
- Analyse the data directory
data/which contains our inflammation data files - Create the
.github/.copilot-instructions.mdfile itself - Summarise the contents of the new instructions file
- Provide some questions for feedback to add more specific guidance in the instructions file
Note that it may request access to run a Bash command in the
data directory, from which it can then ascertain the
structure of the data, which you’ll have to approve.
We’ll look at the contents of the file in a moment.
You may also see some feedback questions, such as:
1. Should I add more detail about the other datasets (climate data, coordinates), or keep focus only on the inflammation data workflow?
2. Are there specific Python version requirements or package versions that should be documented?
3. Would you like guidance on handling edge cases (e.g., what happens with empty CSV files, missing columns)?Working with our Instructions File
You should now see a .github/copilot-instructions.md
file appear in VSCode’s file browser. If you open this file now, you’ll
see some things to note:
- Content is highlighted with a
Keep / Undooption. This is VSCode’s way of highlighting the changes Copilot has made as suggestions, so that you explicitly review and approve them. - A summary of the main code entry point, the data source directory, and the overall workflow of the application
- A section on the code patterns and conventions, essentially
generalising how the code works and providing assumptions on how it
operates,
e.g.
axis=0 consistently means aggregate across rows (patients), preserving measurement dimensions - Some suggestions on how to refactor (tidy) the codebase and otherwise enhancement it
Approve this file addition by selecting Keep.
From this starting point we are free to update this file manually as we continue to develop the code, and this context will be used whenever we interact with Copilot.
Specifying Privacy per File Type
In VS Code, GitHub Copilot gives developers some mechanisms to control the level of privacy. This should be considered important where our code uses sensitive or otherwise confidential data, or potentially valuable IP-related code, such as algorithms.
At a high level, Copilot works by sending small, relevant snippets of your open code (plus surrounding context) to the Copilot service to generate suggestions. You don’t explicitly “upload a project”, but you do control which files Copilot is allowed to see and draw context from.
The most practical control is scoping Copilot by file, folder, or workspace. In VS Code you can disable Copilot entirely, or selectively turn it off for particular file types (for example, configuration files, data files, or notebooks).
For example, we edit our VSCode settings to ignore csv files by:
Using
Ctrl + Shift + PorCmd/Windows Key + Shift + Pto open the Command PaletteEntering and selecting
Preferences: Open User Settings (JSON)-
In the
settings.jsonfile that appears, add the following and save the file:
This will have the effect of potentially including all file types in context by default, but not CSV files.
If you wanted a stricter “default deny” approach instead, you could
specify false for * and enable each filetype
explicitly.
There are stricter controls, including some that allow exclusion by directory specifications, but these are currently limited to Copilot Business users for their repositories and organisations.
Obtaining Guidance on how to Improve our Code
Now have an instructions file to guide Copilot, let’s take its guidance one step further. So far we’ve been asking quite specific questions about this codebase in order to learn more about it. But let’s now consider we might want to do to improve it.
Looking at the code, you may already have your own ideas for how it
could be improved, but let’s ask Copilot instead. Another aspect we
haven’t looked into yet is the other available AI models we can use. So
far we’ve only used the Claude Haiku 4.5 model, but there
are others at time of writing selectable from the models dropdown:
essentially some variants of GPT, and a Raptor model preview.
What’s the ‘x’ Figure Displayed Next to Each Model?
Next to each model you’ll see an x figure,
e.g. 1x. This is a multiplier related to the “cost” of
using this model within our quota of premium requests. So models with a
2x beside them will cost twice as much as one with
1x.
It’s important to be clear on the relative cost, since our quotas will be consumed more quickly with higher cost multipliers!
Asking Copilot to Suggest Improvements
10 mins.
- Select
+to create a new chat conversation - Ensure you have the
Askmode selected in the chat box, and theinflammation-plot.pyfile open and selected in the code editor - Select one of the
Claude Haiku 4.5orGPT-5 minimodels in the model dropdown. - Choose a prompt to ask Copilot how to improve this code, e.g.:
How can I make this code more readable?How should I refactor this code to be more modular?What can I do to improve this code?
Repeat this for the other model, asking the same exact question each time:
- What answer does each model give you?
- How are these responses similar?
- How are these responses different?
Don’t update your code with any of the suggestions just yet, we’ll come to this in the next episode.
Use any remaining time to explore asking other questions!
For the question How can I make this code more readable?
(your responses may differ!)
Note that, for each model, at the top of the response, it mentions three references are used:
-
copilot-instructions.md- as we would expect -
inflammation-01.csv- since it’s pattern is referenced in the source code -
inflammation-plot.py- since this is the file it’s taken as context
Claude Haiku 4.5:
Your code can be made more readable by extracting the repetitive subplot pattern into a helper function and using a tuple/list to store the axes. Here's a refactored version:PYTHON
import glob
import numpy as np
from matplotlib import pyplot as plt
def plot_statistics(axes, data, stat_func, label):
"""Plot a single statistic on the given axes.
Args:
axes: Matplotlib axes object
data: NumPy array of inflammation measurements
stat_func: Function to compute statistic (e.g., data.mean)
label: Y-axis label string
"""
axes.set_ylabel(label)
axes.plot(stat_func(axis=0))
filenames = glob.glob('../data/inflammation-*.csv')
filenames.sort()
filenames = filenames[0:3]
for filename in filenames:
print(filename)
data = np.loadtxt(fname=filename, delimiter=',')
fig = plt.figure(figsize=(10.0, 3.0))
axes = [fig.add_subplot(1, 3, i) for i in range(1, 4)]
plot_statistics(axes[0], data, data.mean, 'average')
plot_statistics(axes[1], data, data.max, 'max')
plot_statistics(axes[2], data, data.min, 'min')
fig.tight_layout()
fig.savefig(filename + '.png')Key improvements:
- Helper function eliminates the three identical ylabel/plot blocks
- List comprehension replaces axes1, axes2, axes3 variables
- Docstring documents the function's purpose and parameters
- Maintains all existing functionality and conventions from your codebaseGPT-5 mini:
Refactored file to improve readability (extracted helper, constants, main, axes list):PYTHON
# ...existing code...
import glob
import numpy as np
from matplotlib import pyplot as plt
FIGSIZE = (10.0, 3.0)
DATA_PATTERN = '../data/inflammation-*.csv'
FILE_LIMIT = 3
def plot_stat(ax, data, stat_func, ylabel):
"""Plot a statistic computed from data on ax."""
ax.set_ylabel(ylabel)
ax.plot(stat_func(data))
def main():
filenames = glob.glob(DATA_PATTERN)
filenames.sort()
filenames = filenames[:FILE_LIMIT]
for filename in filenames:
print(filename)
data = np.loadtxt(fname=filename, delimiter=',')
fig = plt.figure(figsize=FIGSIZE)
axes = [fig.add_subplot(1, 3, i + 1) for i in range(3)]
plot_stat(axes[0], data, lambda d: d.mean(axis=0), 'average')
plot_stat(axes[1], data, lambda d: d.max(axis=0), 'max')
plot_stat(axes[2], data, lambda d: d.min(axis=0), 'min')
fig.tight_layout()
fig.savefig(filename + '.png')
if __name__ == '__main__':
main()
# ...existing code...Key similarities - both models:
- Refactored the duplicated
fig.add_subplotgeneration into a Python list comprehension - Refactored the duplicated
axesset up into a separate function - Added a docstring to the new function, albeit only a brief one with
GPT-5 mini
Key differences:
- Claude Haiku 4.5:
- Defines constants for some of the hardcoded values
- The high-level code is refactored into a
main()function - Adds a
__name__ == '__main__'condition guarding a call to the refactoredmain()function
- GPT-5 mini: the call to the refactored plotting function uses a
lambdadefinition as an argument- Does not provide a textual summary of what it has done at the end
Class Discussion: What are the Benefits and Risks?
5 mins.
Having used some of the features of Copilot, what do you think are:
- The benefits are of using it?
- The risks of using it? What could go wrong?
Possible benefits:
- Accelerates coding by generating boilerplate, scaffolding, and repetitive patterns
- Helps explore implementation options and alternative approaches quickly
- Assists with learning unfamiliar APIs, frameworks, and languages
- Improves consistency by mirroring local code style and conventions
- Speeds up refactoring, renaming, and small transformations
- Frees developer time to focus on higher level concerns
Possible risks:
- Discourages critical thinking
- Produce plausible but incorrect or incomplete code
- Subtly adapt code behaviour that is undesired and difficult to detect
- Suggest outdated or deprecated patterns
- Ignore project-specific requirements or architectural decisions
- Obscures rationale and decision-making responsibility
- Risks licensing or provenance uncertainty if not reviewed
- Reinforce poor existing patterns in the codebase
- Can deskill developers if used uncritically
- Risks generating incorrect output data which ends up in a research publication
Do Not Assign Rational where it Doesn’t Exist
It’s tempting to assign a reason why AI models are making certain suggestions. However, it’s importnat to note that there is no high-level rationale at all, despite appearances.
Copilot and similar tools are suggesting patterns, not reasoning about intent — and that distinction really matters when you’re building software you’ll have to maintain into the future. Remember that such tools can be confidently incorrect.
If you assume “Copilot must have chosen this for a good reason”, you miss the critical step: your own review and justification.
One way to consider Copilot is as a fast junior developer with infinite autocomplete and zero accountability! Such tools are optimised for help, not correctness: suggestions still need human review.
What’s my Copilot Usage?
It’s important to keep track of just how much of our Copilot “plan” we’re using, particularly since we’re (by default) on the free tier of Copilot. We can see an overview of what we’ve consumed and how much is remaining by selecting the Copilot icon (on the left of the bell-shaped icon on the far bottom right of the status bar), e.g.
So in this case, we can see that this user has consumed 0.3% of its quota for inline suggestions (which we’ll look at later), and 36% of the chat messages quota. This allowance resets on a monthly basis, in this case February 23 2026.
- Copilot’s capabilities are added to VSCode by installing two plugins, GitHub Copilot and GitHub Copilot chat.
- Consider and configure the level of privacy for Copilot by configuring it within your account at GitHub’s website.
- Generally, it’s recommended to disable
Suggestions matching public codeat a minimum to avoid it making use of public code sources in a way that isn’t properly licensed. - Copilot has three modes of operation: Ask, Edit and Agent, each delegating a higher degree of autonomy to Copilot.
- Due to the way LLMs process requests, responses based on the same question will likely show differences.
- To write a good chat response, be specific and add as much context as possible.
- Add context to a prompt by including
#followed by the context, e.g.#inflammation-plot.pyor#codebase'. - Personalise Copilot’s context by creating an
.github/.copilot-instructions.mdfile. - Explicitly deny (or allow) Copilot to use specific file types by
editing or adding
github.copilot.enableinsettings.json. - Due to the way LLMs work, there is no “rationale” behind Copilot’s responses.
- Check Copilot’s usage for inline suggestions and chat messages within your current tier by selecting it’s icon in the status bar.
Content from How to use Copilot to Improve an Existing Codebase
Last updated on 2026-02-12 | Edit this page
Overview
Questions
- How can Copilot help me improve my code?
- What can I do to improve my Copilot prompts?
- How can I reuse previous Copilot prompts?
Objectives
- Describe how to use prompt engineering to obtain valuable responses from Copilot
- Use Copilot to improve a segment of code
- Use Copilot to add a new, small feature to an existing codebase
- Describe how to use Copilot to assist with Git commit messages
- Create and use a reusable prompt context
In the previous episode we looked at Copilot giving us guidance and advice to improve our code. In this episode, we’ll look at how Copilot can assist with code modifications more directly, looking at the following features:
-
Inline suggestions- where Copilot provides coding suggestions as you type -
Agent mode- where Copilot directly autonomously undertakes either small or large scale changes on request, with a single option to approve the changes at the end of the process
These are in ascending order of autonomy, authority and scope that we delegate to Copilot to make changes. As we’ll see, as we delegate more authority and scope, the more we should increase our skepticism and diligence in reviewing and understanding suggestions made by such tools.
Inline Suggestions
Within VSCode, Copilot can provide “inline” suggestions as we type, which go much further than typical IDE autocomplete suggestions.
If we select the Copilot icon again in the status bar, we can see the current inline settings:
So here, we can see that inline settings will apply to all Python
files. These suggestions will appear as “ghosted text” suggestion which
you can autocomplete with tab, very similar to how they appear with
standard VSCode autocomplete. There are also
Next edit suggestions which go beyond the immediate context
to make suggestions in other places in your code. These predict the
location and the content of the next edit you’ll want to make.
Let’s say we want to add a new section describing our coding style. Add the following at the bottom of the file:
You should see a suggestion appear direcly after your cursor,
something like Use PEP 8 style guidelines for Python code,
Use descriptive variable names (e.g., data, mean_plot, max_plot, min_plot)
or similar. You can accept this suggestion by pressing Tab.
If you continue to add new lines after this, you may find it continues
to suggest other things to include, so we end up with, for example:
MARKDOWN
### Coding Style
- Use descriptive variable names (e.g., `inflammation_data`, `mean_inflammation`)
- Follow PEP 8 for formatting (indentation, spacing)
- Comment code sections for clarity, especially data processing stepsIt does this by rapidly incorporating contextual information from a number of sources to infer a suggestion, including:
- The code file you are editing
- Any code you have currently selected
- Frameworks, languages and dependencies
- Any instructions file
Copilot suggestions are a starting point, but we should alwyays review, understand, and amend as necessary, as opposed to blindly accepting suggestions.
Amend the Suggestions
3 mins.
Read through and understand the Copilot suggestions for the Coding
Style section of the copilot-instructions.md file, and
add/amend as you see fit, perhaps to fit your coding style.
For example:
MARKDOWN
### Coding Style
- Follow PEP 8 style guidelines for Python code
- Use descriptive variable names (e.g., `inflammation_data`, `mean_inflammation`)
- Comment code sections for clarity, especially to explain purpose and logic, and to describe data processing stepsAs we’ll see shortly, these coding style guidelines will inform future refactoring of our code.
Inline Suggestions for Code
3 mins.
In inflammation-plot.py, begin adding an additional
parameter to the functions calls in the code, by placing an additional
, at the end of the given list of parameters, and see which
inline suggestions are being made, e.g.:
Try this for the following function calls: - np.loadtxt
- plt.figure - Each of the .plot calls to the
axes variables
- What’s being suggested?
- Are the suggestions helpful? Are they always the same?
- Does the code run as you expect?
- For example:
For .plot, if the first suggestion of a
color parameter is selected, it suggests variants of that
for the other calls to plot, e.g.
Agent Mode: Small Changes
Agent mode differs from inline suggestions by offering the ability to enact changes step-by-step directly on your approval. Unlike inline suggestions which appear as you type, this mode allows you to request broader changes across multiple lines or functions, so it’s ideal for repetive things like small-scale refactoring of code logic or renaming variables. It represents a middle ground in terms of autonomy — more direct than inline suggestions but less autonomous than Plan mode.
To get started with using Copilot to make a small edit, you highlight the code you want to modify before requesting the change you want.
For example:
- Select
+to create a new chat conversation - Select
inflammation-plot.pyin the chat context - Select
Askas the Copilot mode in the chat window - Select a model of your choice
- Select the entire for loop in
inflammation-plot.py; you’ll notice that the context now includes this file with the selected line numbers - Enter
Add a comment about this code above this loop - Press
Enter
You’ll now see a comment added above the loop highlighted in green, e.g.
PYTHON
# Process each inflammation data file and generate a 3-panel visualization
# showing the mean, maximum, and minimum inflammation values across patientsYou’ll also see a Keep or Undo pop-up
displayed at the bottom. Read through the comment, and if you agree that
the comment summarises the code sufficiently, select
Keep.
The Temptation to Blindly Accept!
So note that here, we properly scrutinise the suggestion as opposed to accepting it blindly! it would be all too easy to just assume it’s correct and just accept it, but it’s helpful to remember that tools like Copilot are like a more helpful autocomplete, not a thinking teammate. As such, skepticism and review must become a key practice when using such tools.
Copilot and Commit Messages
What’s also useful is that we can have Copilot draft Git commit messages for us too. Sometimes writing concise messages is a bit of a pain, and this can help shortcut this activity a bit. It’s also useful as an indicator of the scope of what we’ve changed semantically, although since Copilot aims to be concise, it may miss some key details.
Let’s add the changes we’ve made so far to the Git staging area:
- Select
Source Controlin the navigation bar (the third one down) - Select the
+icon next toinflammation-plot.pyin theChangeslist, which will add our changes so far to the Git staging area - Select the sparkle icon next to the
Messagetext box
You should see something like:
Enhance inflammation plot visualization by adding colors and specifying data type
Of course, we should vet and edit (or ask Copilot to retry) this description accordingly. In this case, it doesn’t mention about the DPI setting which might be a particular nuance we wish to add, so again, we need to review what Copilot suggests.
Also worth noting is that if we wanted to reference a repository issue number in our commit message, we should remember to add that as well.
Once we’re happy with it, we can then select Commit to
commit our changes to our local repository.
A Small Refactor!
3 mins.
Let’s assume we want to rename the axes variables to
have the prefix subplot instead, e.g. instead of
axes1, we’d have subplot1.
Use Copilot agent mode to rename all of these variables, then verify and accept the changes if you agree with them. Does the code still run correctly?
Note: after selecting the code, you can also request edits by typing
Ctrl + I (Linux) or
Cmd Key/Windows Key + I (Mac/Windows) to have
a small pop-up appear to type in your request, which is quicker and
sometimes more convenient if it’s a small request.
-
Select the code from the first
axes1definition to the last use ofsubplot3, e.g. Ensure
Agentmode is selected in chat, and enterRename axes variables to have a subplot prefix insteadPress
Enterand you should see something like the following:
After reviewing the suggestions, select
Keep
The code still runs correctly.
Agent Mode: Larger-scale Changes
We can also ask Copilot in agent mode to make much larger, potentially multi-file changes across our codebase. So instead of asking Copilot to change a specific piece of code, you give it a goal, such as adding a feature, or refactoring a module. Copilot then plans how to achieve that goal and works across the repository to do so. It may read and modify multiple files, add or update tests, adjust configuration, and iterate over several steps before presenting the result. In this way, agent mode behaves more like a junior developer taking on a task, rather than a pair programmer responding line-by-line.
Note the increase in authority to modify code, which represents a much greater risk: the impact of changes is greater and requires more careful (and potentially more involved) review.
In the last episode we looked at the suggestions made by two Copilot models to improve the code. Let’s now use agent mode to do this as a refactoring activity, directly amending our code with the goal to improve its readability.
- Select
+to create a new chat conversation - Select
inflammation-plot.pyin the chat context - Set Copilot’s mode to
Agent - Select a model you’d like to use
- Enter the following prompt:
Refactor this code to improve it's modularity and readability - Press
Enter - Once suggested improvements appear, review the changes and either:
- If you agree with them and think they are an improvement on the
original code,
Keepthe suggestions - If you don’t agree with them, cancel the suggestions and select the
circular
Retryicon at the bottom left of the chat response until you get something more acceptable
- If you agree with them and think they are an improvement on the
original code,
One example of output:
PYTHON
"""
Analyze and visualize inflammation data.
This script reads inflammation CSV files from data/, computes statistics
(mean, max, min) across patients for each day, and saves corresponding
plots as PNG files.
"""
import glob
from pathlib import Path
import numpy as np
from matplotlib import pyplot as plt
def load_inflammation_data(filename: str) -> np.ndarray:
"""Load inflammation data from a CSV file.
Args:
filename: Path to the CSV file containing inflammation data.
Returns:
A 2D numpy array where rows are patients and columns are days.
"""
return np.loadtxt(fname=filename, delimiter=',')
def create_statistics_plot(data: np.ndarray, figure_size: tuple = (10.0, 3.0)) -> plt.Figure:
"""Create a figure with three subplots showing mean, max, and min values.
Args:
data: A 2D numpy array of inflammation values.
figure_size: Tuple of (width, height) for the figure in inches.
Returns:
The matplotlib Figure object containing the three subplots.
"""
fig = plt.figure(figsize=figure_size)
# Create subplots for mean, max, and min statistics
subplots = [fig.add_subplot(1, 3, i) for i in range(1, 4)]
statistics = [
('average', data.mean(axis=0)),
('max', data.max(axis=0)),
('min', data.min(axis=0)),
]
for subplot, (label, values) in zip(subplots, statistics):
subplot.set_ylabel(label)
subplot.plot(values)
fig.tight_layout()
return fig
def process_inflammation_file(filename: str) -> None:
"""Load inflammation data and save a statistics plot.
Args:
filename: Path to the CSV file to process.
"""
print(filename)
data = load_inflammation_data(filename)
fig = create_statistics_plot(data)
output_filename = f"{filename}.png"
fig.savefig(output_filename)
plt.close(fig)
def main() -> None:
"""Load and process all inflammation data files."""
filenames = sorted(glob.glob('data/inflammation-*.csv'))
for filename in filenames:
process_inflammation_file(filename)
if __name__ == '__main__':
main()So in this instance, we can see that there are a whole swathe of changes:
- Modularised the codebase by refactoring into four functions: use of a main function called from the top-level script, for loading a CSV file, generating a plot for a set of data, and processing a particular inflammation file
- Docstrings have been added for each of the functions and the module
- The processing of the average, maximum and minimum values has been refactored into a loop iterating over a data structure
- The subplots are generated within a loop using
zip()to provide corresponding pairs of array elements into the loop. If we didn’t like this particular style, we might use Edit mode on this segment to simplify it
Note that it differs substantially from the version shown from a similar question made in Ask mode earlier, and whilst it is more modular, it’s now 127 lines of code where before it was 32 lines - we might consider this to be quite an over-engineered overkill.
What if I don’t get a Good Response?
If you aren’t getting a good response despite retrying several times, it suggests that the prompt is either not reflective of what you’re really after or isn’t specific enough, so try amending the request.
Now once the suggestions have been integrated, we’re still able to
undo these changes, e.g. either by selecting Edit and
Undo from the VSCode menu, or pressing
Ctrl + Z (or Cmd/Windows Key + Z). We’re also
able to edit a previous prompt in the chat window, perhaps adding more
specifics for what we want.
A Large Refactor!
5 mins.
Perhaps the suggestions look generally quite good, but maybe it isn’t quite what we’re after.
Select Edit and then Undo from the VSCode
menu to undo the recent changes.
Edit the agent mode prompt in the chat (using a model of your choice) to include more specificity in the request, for example:
Refactor this code to improve its modularity and readability, using the reST format for docstringsRefactor this code to improve its modularity and readability, and easy to understand for a novice coder
You might want to Retry or amend your prompt a few times
to obtain something you find acceptable!
For the second prompt above, for example (note the increased level of commenting, more descriptive docstrings, and less complex coding patterns for data processing and generating the plots):
PYTHON
"""
Inflammation Data Visualization Script
This script processes inflammation data from CSV files and creates visualizations
showing average, maximum, and minimum inflammation levels across patients for each day.
"""
import glob
import numpy as np
from matplotlib import pyplot as plt
def load_inflammation_data(filepath):
"""
Load inflammation data from a CSV file.
Args:
filepath (str): Path to the CSV file to load
Returns:
np.ndarray: 2D array of inflammation data (rows=patients, columns=days)
"""
data = np.loadtxt(fname=filepath, delimiter=',')
return data
def create_statistics_figure(data):
"""
Create a figure with three subplots showing statistics of inflammation data.
Args:
data (np.ndarray): 2D array of inflammation data
Returns:
tuple: (figure object, list of subplot axes)
"""
# Create figure with three subplots side by side
fig = plt.figure(figsize=(10.0, 3.0))
# Create three subplots for average, max, and min
subplots = [
fig.add_subplot(1, 3, 1),
fig.add_subplot(1, 3, 2),
fig.add_subplot(1, 3, 3),
]
return fig, subplots
def plot_statistics(subplots, data):
"""
Plot average, maximum, and minimum statistics on the given subplots.
Args:
subplots (list): List of matplotlib axes objects
data (np.ndarray): 2D array of inflammation data
"""
# Calculate statistics across all patients (axis=0)
average = data.mean(axis=0)
maximum = data.max(axis=0)
minimum = data.min(axis=0)
# Plot average on first subplot
subplots[0].set_ylabel('average')
subplots[0].plot(average)
# Plot maximum on second subplot
subplots[1].set_ylabel('max')
subplots[1].plot(maximum)
# Plot minimum on third subplot
subplots[2].set_ylabel('min')
subplots[2].plot(minimum)
def save_figure(figure, filename):
"""
Save a matplotlib figure as a PNG file.
Args:
figure: matplotlib figure object
filename (str): Output filename (will add .png extension)
"""
output_filename = filename + '.png'
figure.savefig(output_filename)
print(f"Saved visualization: {output_filename}")
def process_inflammation_files(data_directory='data/inflammation-*.csv'):
"""
Process all inflammation CSV files and create visualizations.
This function:
1. Finds all CSV files matching the pattern
2. Loads data from each file
3. Creates a figure with statistical plots
4. Saves the figure as a PNG file
Args:
data_directory (str): Glob pattern for finding CSV files
"""
# Find all inflammation CSV files
filenames = sorted(glob.glob(data_directory))
# Process each file
for filename in filenames:
print(f"Processing: {filename}")
# Load data from file
data = load_inflammation_data(filename)
# Create figure with subplots
fig, subplots = create_statistics_figure(data)
# Plot statistics on the subplots
plot_statistics(subplots, data)
# Arrange subplots so labels don't overlap
fig.tight_layout()
# Save figure as PNG file
save_figure(fig, filename)
# Main execution
if __name__ == '__main__':
process_inflammation_files()A “Clever” Refactor!
5 mins.
Let’s assume that we want to expand this codebase further. Perhaps we know that the inflammation data format will change in the future, in ways that mean the NumPy library isn’t the ideal processing library of choice, and that the Pandas library (which is a more general purpose data analysis library) will be a much better fit for this work.
Using agent mode and a model of your choice, ask Copilot to refactor your code to use Pandas instead of NumPy:
Part 1:
- Construct and enter a suitable prompt
- Review and accept the changes
- What do you need to do to be able to re-run the code?
- Does the code generate the correct results?
- Add the changes to Git staging area, Ask Copilot to generate a commit message, amend as necessary, and commit the change
Part 2:
- If you already know Pandas, do the changes look sensible?
- If you don’t know Pandas, what are the risks of accepting these changes?
Part 2:
If you don’t already know Pandas, there is a considerable risk with this type of refactoring: by accepting these modifications, we’re including code without understanding the concepts or operations of Pandas. This greatly increases the risk that we generate incorrect code, and should be avoided.
Another Plot Please
3 mins.
Use agent mode to add the generation of a fourth plot to the code, for standard deviation, test the code to ensure it works, then add and commit the changes with a Copilot-generated (and reviewed) commit message.
Prompt:
Add a fourth axes plot for standard deviation
PYTHON
fig = plt.figure(figsize=(13.0, 3.0), dpi=100)
axes1 = fig.add_subplot(1, 4, 1)
axes2 = fig.add_subplot(1, 4, 2)
axes3 = fig.add_subplot(1, 4, 3)
axes4 = fig.add_subplot(1, 4, 4)
axes1.set_ylabel('average')
axes1.plot(data.mean(axis=0), color='blue')
axes2.set_ylabel('max')
axes2.plot(data.max(axis=0), color='red')
axes3.set_ylabel('min')
axes3.plot(data.min(axis=0), color='green')
axes4.set_ylabel('std')
axes4.plot(data.std(axis=0), color='orange')Class Discussion: What Will You Change?
5 mins.
How do you see AI coding assistants like Copilot changing your working practices?
The Importance of Process
Process - the way we do things - is important in software engineering because it’s what leads towards reliable outcomes. Without process we rely on tacit knowledge and luck. But with process, we get repeatability, shared understanding, and the ability to improve over time. Good process makes work visible, enforces quality at the right moments (design, review, testing, release), and creates feedback loops so mistakes are caught early, when they’re cheapest to fix. In science, reproducibility is a central tenet of research. So as responsible researchers, we need to ensure we apply the same rigour to the software we write.
AI tools like Copilot make this more important, not less. Whilst it accelerates code generation, it doesn’t understand intent or consequences, so a strong process ensures we use AI in an environment that amplifies good engineering habits instead of bypassing them. The key principle is that process assigns responsibility to people, not tools. Copilot speeds up execution, but process ensures accountability, quality, and sustainability.
Class Discussion: How Should we Mitigate The Risks of using AI Coding Tools?
5 mins.
What can we do to mitigate the risks of using AI coding tools like Copilot? How should we adapt our day-to-day development to accommodate these changes, not only for we use such tools with code, but also with our data?
Some suggestions:
- Ensure suggested changes are throughly reviewed understood prior to their inclusion in the code
- Keep the context and scope of prompts (and their expression) to a minimum to accomplish a task, to discourage large and/or complex suggestions that are difficult to understand
- In the case of refactored code, ensure suggested changes are throughly tested against the original version to ensure correct behaviour, i.e. manually, but also re-running a unit test suite if one exists and includes sufficient tests for the modified code
- Consider adding unit tests for AI-suggested changes or new features
- Ensure we continue to adhere to any project defined data management plan and institutional research data management policies
Note that many of these changes are accepted best practice for code written manually. However since much less of our own cognition is involved in this style of development, adopting a more critical and skeptical approach becomes even more important.
Reusable Code Prompts
Reusable prompts in VSCode Copilot are predefined instructions or templates that you can quickly insert and use to guide Copilot’s code generation or assistance. These prompts help you standardize requests, save time, and ensure consistency when working on repetitive tasks or when you want Copilot to follow specific patterns.
How Reusable Prompts Work
You can create reusable prompts by saving frequently used chat
instructions or code templates in markdown format. These reside in the
.github/prompts directory, and their filenames look like
my-command-name.prompt.md.
When you need Copilot to perform a task, you can insert a reusable
prompt you’ve already created into the chat using /
followed by the command name (e.g. /my-command-name), and
Copilot will interpret the prompt and generate code or suggestions based
on the provided context.
Reusable prompts help you: - Speed up development by avoiding repetitive typing - Maintain consistency in code style and structure - Share best practices and prompt templates with your team
Common reusable prompts include requests like “Write a function to…”, “Add type annotations to…”, or “Generate unit tests for…”. We then have the option to adapt these to our specific project needs.
Some Copilot extensions or plugins may offer enhanced support for managing and sharing reusable prompts, making it easier to organize and access them within VSCode.
Let’s create a reusable prompt now. Our code repository is currently lacking a README, so let’s adapt a pre-existing prompt definition. There are many reusable and freely available Copilot resources at Awesome GitHub Copilot, including agents, reusable prompts, and instruction files, all available from a GitHub repository.
Let’s first obtain a reusable prompt for generating README files. Take a look at https://raw.githubusercontent.com/github/awesome-copilot/refs/heads/main/prompts/readme-blueprint-generator.prompt.md:
Looking at the file, we can see a number of structural features:
- A metadata header at the top, describing what it aims to do and how it will run (in this case, via an agent)
- A sequence of steps to follow, in this case starting with scanning a
certain set of files to build context, using any
copilot-instructions.mdfile, and generating a sections each based on specific criteria - Some end instructions clarifying how to format the README, and some high-level guidance on how to write it
Create a Reusable Prompt File and Generate a README
5 mins.
- Create a new directory at
.github/promptsto hold any prompt files we want to include - Download the prompt file at https://raw.githubusercontent.com/github/awesome-copilot/refs/heads/main/prompts/readme-blueprint-generator.prompt.md into this directory
- Select agent mode and a model of your choice in the chat
- Use the prompt file to generate a README by typing
/readme-blueprint-generatorinto the chat. The chat will autocomplete the name. Press enter to invoke it - Select
Retryif you want it to try again
Once generated, review, accept, and amend the README as you see fit. You’ll likely see things you want to correct or adapt!
Add a short description to the shared notes document describing what you think about what is generated:
- Generally, to what extent is the README is useful?
- What is incorrect and needs to be fixed?
- What is missing?
- Inline suggestions are made by Copilot as “ghosted text” in the
editor which you autocomplete with the
Tabkey. - Copilot can suggest small-scale modifications for your approval
based on a segment of code by selecting the code and using
Editmode in the chat window (or pressingCtrl + IorCmd/Windows Key + I) and entering a request. - Always review and never blindly accept AI-generated code suggestions.
- Copilot can write summary Git commit messages for us in VSCode by
selecting the sparkle icon next to the commit message text box in the
Source controlnavigation tab. - Agent mode can suggest larger-scale modifications to our code across
multiple files by using
Agentmode in the chat window, and entering a more comprehensive and complex request. - Select
Retryto have Copilot re-generated a response. - It’s important to consider how to include AI-based coding assistants in your day-to-day development process to ensure accountability, quality, and sustainability are maintained within a codebase.
- Reusable prompts in VSCode Copilot are predefined instructions or templates that you can quickly insert and use to guide Copilot’s code generation or assistance.
Content from Investigate a New Codebase
Last updated on 2026-02-10 | Edit this page
Overview
Questions
- How can I use Copilot in a defined and repeatable way to explore new codebases?
Objectives
- Investigate a new codebase in terms of purpose and areas for improvement.
- Write and use a reusable prompt to understand a codebase.
- Write and use a reusable prompt to conduct a code review.
In this episode we’ll investigate a new codebase to increase our understanding of how it operates and to identify strengths, weaknesses and ways to improve it.
Preparing Useful Prompts
We’ve seen how we are able to reuse prompts by storing them in a prompt file. Before we go ahead and investigate a new codebase, let’s add some reusable specialist prompts to help conduct this investigation for us.
Prompt to Explain a Codebase
Let’s start with a prompt to help us understand a codebase. Here’s an
example code review prompt file based on one from the GitHub
Docs. Add the following draft to a new prompt file at
.github/prompts/explain-code.prompt.md:
MARKDOWN
---
description: 'Generate a clear code explanation with examples'
agent: 'agent'
---
Explain the following code in a clear, beginner-friendly way:
Please provide:
* A brief overview of what the code does
* A step-by-step breakdown of the main parts
* Explanation of any key concepts or terminology
* A simple example showing how it works
* Common use cases or when you might use this approach
Use clear, simple language and avoid unnecessary jargon.How Do You Understand a Codebase?
3 mins.
When investigating a new codebase, what is it that really helps you
to understand what it does and how it works? Tailor the
explain-code.prompt.md file to include this criteria.
Prompt to Conduct a Code Review
Next, let’s add a reusable prompt to conduct a code review of a codebase, to help us understand it’s strengths and weaknesses, and what needs to be fixed.
Here’s an example code review prompt file based on one from the GitHub
Docs. Copy this into a
.github/prompts/review-code.prompt.md file:
MARKDOWN
---
description: 'Perform a comprehensive code review'
agent: 'agent'
---
## Role
You're a senior software engineer conducting a thorough code review. Provide constructive, actionable feedback.
## Review Areas
Analyze the selected code for:
1. **Security Issues**
- Input validation and sanitization
- Authentication and authorization
- Data exposure risks
- Injection vulnerabilities
2. **Performance & Efficiency**
- Algorithm complexity
- Memory usage patterns
- Database query optimization
- Unnecessary computations
3. **Code Quality**
- Readability and maintainability
- Proper naming conventions
- Function/class size and responsibility
- Code duplication
4. **Architecture & Design**
- Design pattern usage
- Separation of concerns
- Dependency management
- Error handling strategy
5. **Testing & Documentation**
- Test coverage and quality
- Documentation completeness
- Comment clarity and necessity
## Output Format
Provide feedback as:
**🔴 Critical Issues** - Must fix before merge
**🟡 Suggestions** - Improvements to consider
**✅ Good Practices** - What's done well
For each issue:
- Specific line references
- Clear explanation of the problem
- Suggested solution with code example
- Rationale for the change
Be constructive and educational in your feedback.How Do You do a Code Review?
3 mins.
If you were to conduct a code review of a codebase, how would you go
about it? Which areas would you look at and how would you investigate
them? Tailor the review-code.prompt.md file to include this
criteria.
Investigate!
20 mins.
Pick a GitHub code repository of your choice. It could be something you (or your group) has written, something you’re planning on using, or something you’re simply interested in.
Clone the repository to your local machine, and use the prompts you’ve just created to build an understanding of the codebase and explore it’s strengths and weaknesses.
Do you agree with the assessments? Are they useful? How could you improve them for use in the future?
- Build an array of useful reusable prompts to accomplish specific tasks related to software development.
- Review their usefulness and improve them over time.
